FX30B-2P-3.81DS footprint, schematic symbol and 3D model by Hirose

Symbol

click to zoom

PCB Footprints

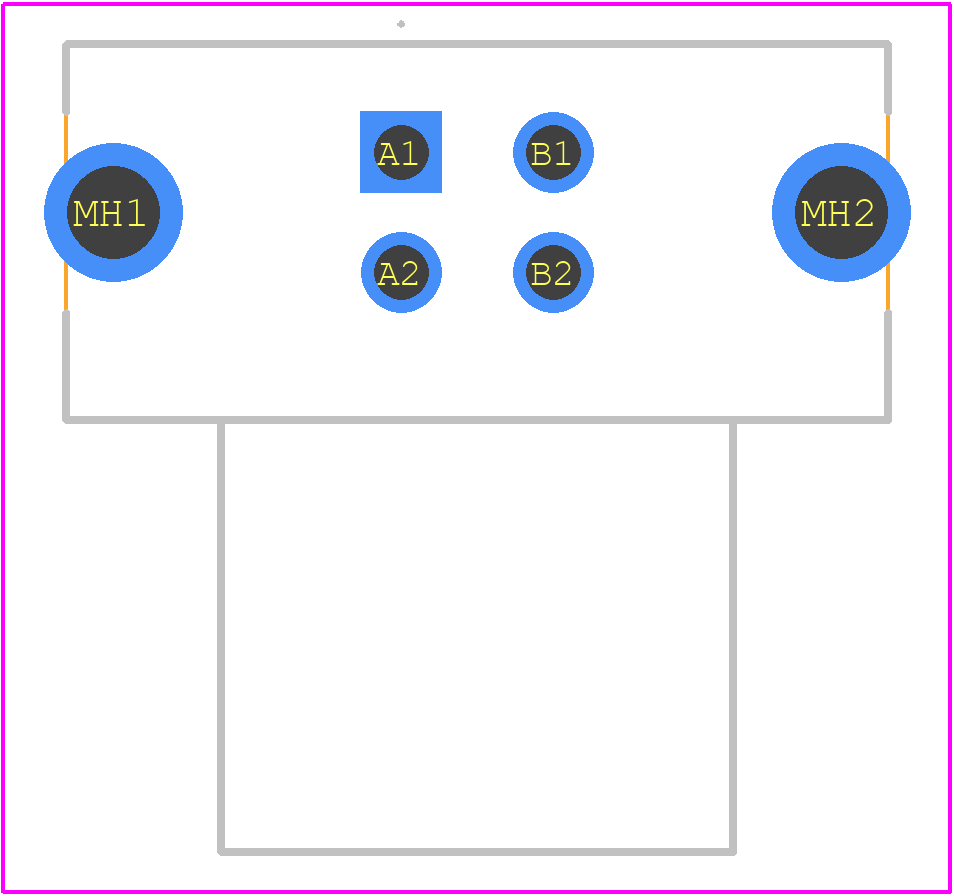

FX30B-2P-3.81DS - Hirose PCB footprint - Other - Other - FX30B-2P-3.81DS-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FX30B-2P-3.81DS
Part Number FX30B-2P-3.81DS
Manufacturer Hirose
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - FX30B-2P-3.81DS-1
Released Date Mar 29, 2024
Last Modified Date Dec 25, 2024 9:17 AM UTC
Pinout / Pin List Click Here (Member Only)

FX30B-2P-3.81DS Details

Manufacturer Part Number:
FX30B-2P-3.81DS
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
16 Weeks
Manufacturer:
Hirose Electric Co Ltd

FX30B-2P-3.81DS Frequently Asked Questions (FAQs)

The recommended mating cycle for FX30B-2P-3.81DS connectors is 500 cycles.
Yes, FX30B-2P-3.81DS connectors are designed to withstand high-vibration environments and are suitable for use in applications with vibration levels up to 10G.
The operating temperature range for FX30B-2P-3.81DS connectors is -40°C to 105°C.
Yes, FX30B-2P-3.81DS connectors are designed to be compatible with automated assembly processes, including pick-and-place machines and robotic assembly lines.
The typical lead time for FX30B-2P-3.81DS connectors is 8-12 weeks, but this may vary depending on the quantity and availability.

Trust Checks

Community Provided

System Verified

Community Approved

FX30B-2P-3.81DS Overview

Use the download button to access the FX30B-2P-3.81DS schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FX30B, or try a keyword search, such as Power Connectors
