FX30B-3P-3.81DSA25 - Hirose

Description: Board to Board & Mezzanine Connectors 3P B2B PWR CON STRT HDR 25MM H T/H

Download FX30B-3P-3.81DSA25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FX30B-3P-3.81DSA25 - Hirose - PCB symbol
click to zoom

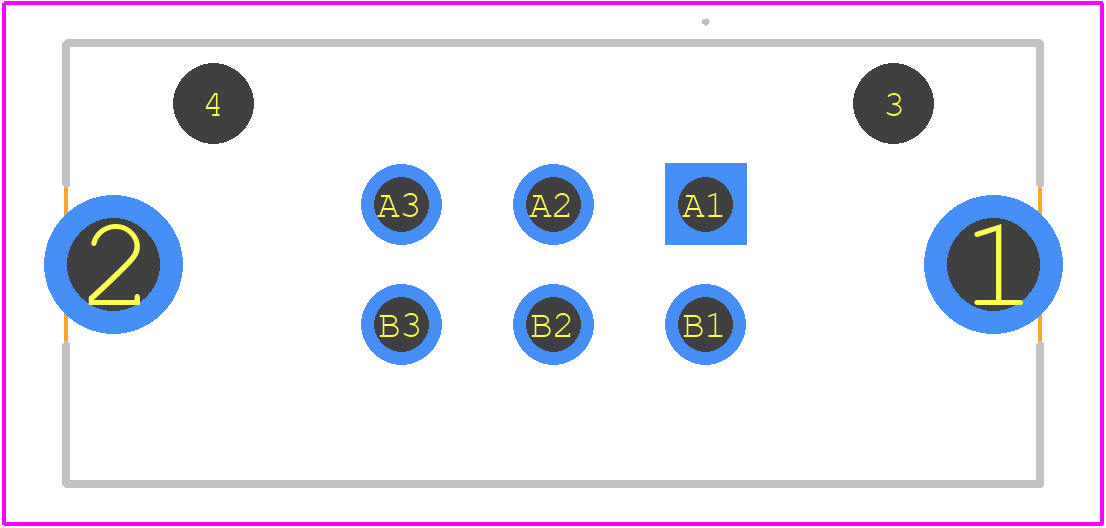

PCB Footprints
FX30B-3P-3.81DSA25 - Hirose PCB footprint - Other - Other - FX30B-3P-3.81DSA25-2
click to zoom
3D Models
FX30B-3P-3.81DSA25 - Hirose - 3D model - Other - FX30B-3P-3.81DSA25-2
click to zoom

FX30B-3P-3.81DSA25 Details

  • Manufacturer Part Number:

    FX30B-3P-3.81DSA25

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    AU

  • Contact Finish Termination:

    GOLD

  • Contact Material:

    COPPER ALLOY

  • JESD-609 Code:

    e4

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX30B-3P-3.81DSA25 Overview

Use the download button to access the FX30B-3P-3.81DSA25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX30B, or try a keyword search, such as Power Connectors
