FX30B-3P-3.81DSA30 - Hirose

Description: Board to Board & Mezzanine Connectors 3P B2B PWR CON STRT HDR 30MM H T/H

Download FX30B-3P-3.81DSA30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FX30B-3P-3.81DSA30 - Hirose - PCB symbol
click to zoom

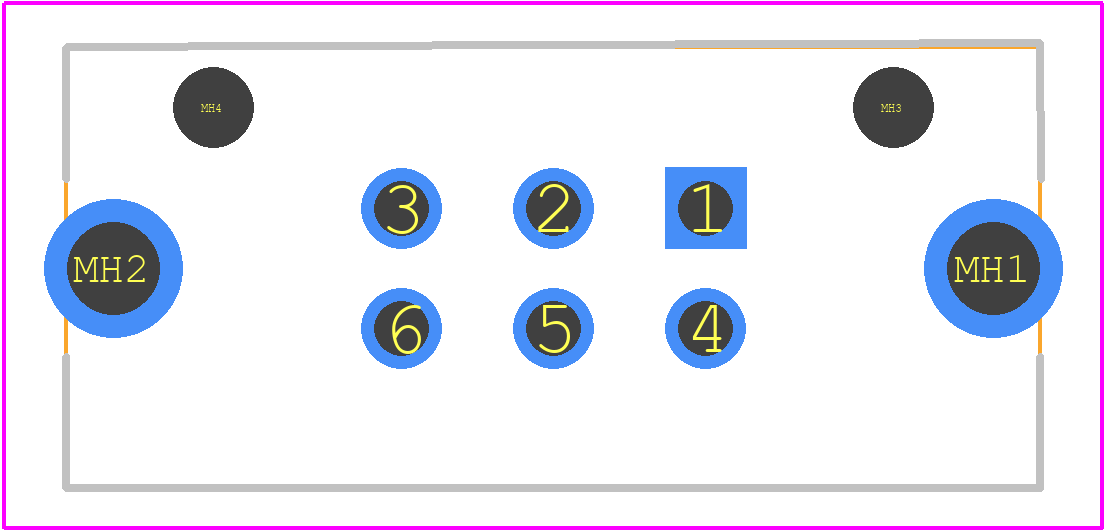

PCB Footprints
FX30B-3P-3.81DSA30 - Hirose PCB footprint - Other - Other - FX30B-3P-3.81DSA30-4
click to zoom
3D Models
FX30B-3P-3.81DSA30 - Hirose - 3D model - Other - FX30B-3P-3.81DSA30-4
click to zoom

FX30B-3P-3.81DSA30 Details

  • Manufacturer Part Number:

    FX30B-3P-3.81DSA30

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    AU

  • Contact Finish Termination:

    GOLD

  • Contact Material:

    COPPER ALLOY

  • JESD-609 Code:

    e4

FX30B-3P-3.81DSA30 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the FX30B-3P-3.81DSA30 connector is 10-20 cycles, depending on the application and environmental conditions.
  • Yes, the FX30B-3P-3.81DSA30 connector is designed to withstand high-vibration environments, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the FX30B-3P-3.81DSA30 connector is designed for outdoor use, with a rating of IP67, which means it can withstand dust and water immersion up to 1 meter for 30 minutes.
  • The operating temperature range for the FX30B-3P-3.81DSA30 connector is -40°C to 85°C, making it suitable for a wide range of applications.
  • Yes, the FX30B-3P-3.81DSA30 connector is designed to withstand high-humidity environments, with a humidity rating of 90% RH at 40°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX30B-3P-3.81DSA30 Overview

Use the download button to access the FX30B-3P-3.81DSA30 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX30B, or try a keyword search, such as Power Connectors
