FX30B-4P-3.81DSA25 - Hirose

Description: Board to Board & Mezzanine Connectors 4P B2B PWR CON STRT HDR 25MM H T/H

Download FX30B-4P-3.81DSA25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

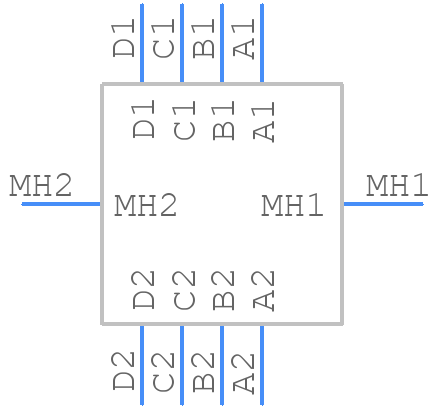

FX30B-4P-3.81DSA25 - Hirose - PCB symbol
click to zoom
PCB Footprints

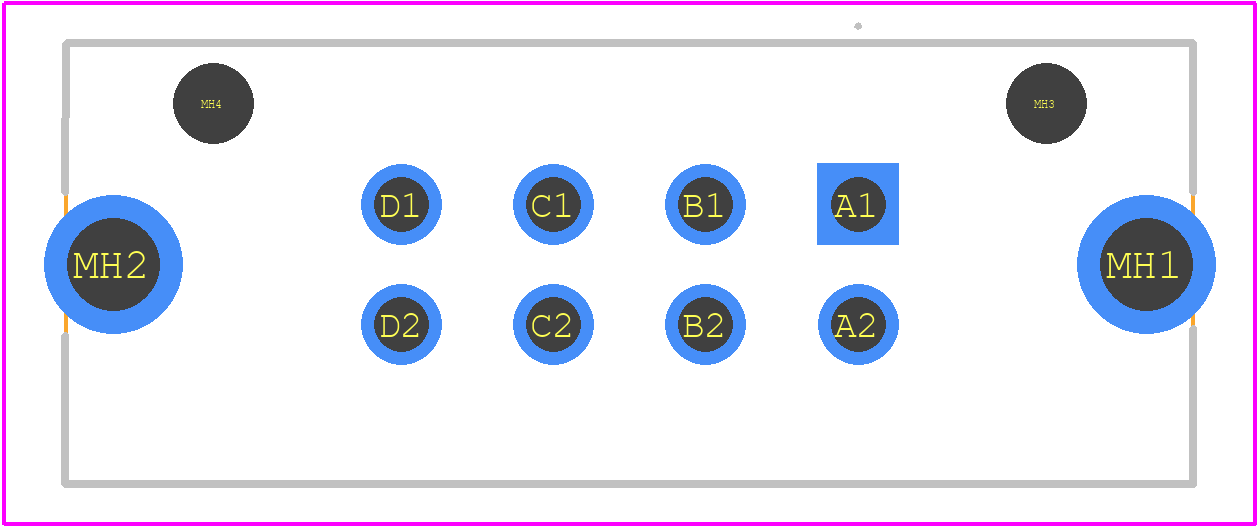

FX30B-4P-3.81DSA25 - Hirose PCB footprint - Other - Other - FX30B-4P-3.81DSA25-1
click to zoom
3D Models
FX30B-4P-3.81DSA25 - Hirose - 3D model - Other - FX30B-4P-3.81DSA25-1
click to zoom

FX30B-4P-3.81DSA25 Details

  • Manufacturer Part Number:

    FX30B-4P-3.81DSA25

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    AU

  • Contact Finish Termination:

    GOLD

  • Contact Material:

    COPPER ALLOY

  • JESD-609 Code:

    e4

FX30B-4P-3.81DSA25 Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the FX30B-4P-3.81DSA25 connector is 500 cycles.
  • Yes, the FX30B-4P-3.81DSA25 connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, industrial, and aerospace.
  • The operating temperature range for the FX30B-4P-3.81DSA25 connector is -40°C to 105°C.
  • Yes, the FX30B-4P-3.81DSA25 connector is compatible with lead-free soldering, making it suitable for RoHS-compliant applications.
  • The typical insertion force for the FX30B-4P-3.81DSA25 connector is around 10-20 N (2.2-4.4 lbf) per contact.
