FX30B-4S-3.81DSA - Hirose

Description: Hirose FX30B Series 3.81mm 4 Way 1 Row Straight PCB Socket Through Hole Board to Board

Download FX30B-4S-3.81DSA Model
Schematic
symbols

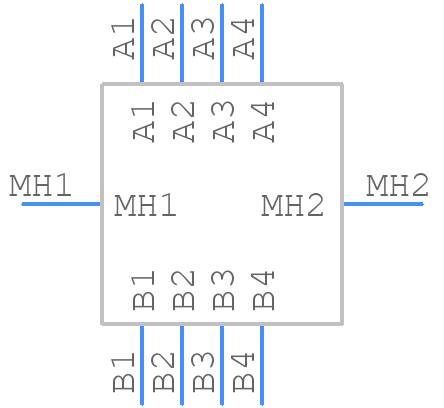

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

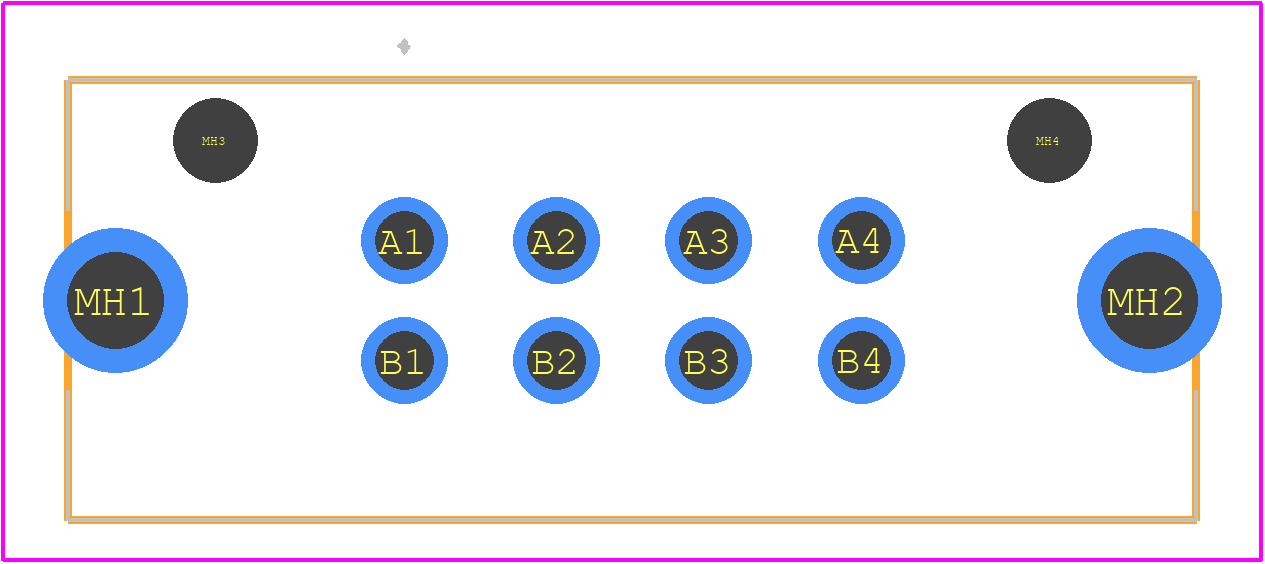

FX30B-4S-3.81DSA - Hirose PCB footprint - Other - Other - FX30B-4S-3.81DSA-2
click to zoom
3D Models
FX30B-4S-3.81DSA - Hirose  - 3D model - Other - FX30B-4S-3.81DSA-2
click to zoom

FX30B-4S-3.81DSA Details

  • Manufacturer Part Number:

    FX30B-4S-3.81DSA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Hirose Electric Co Ltd

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P4

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    2 mΩ

  • Contact Style:

    BLADE PIN-SKT

  • Dielectric Withstanding Voltage:

    750VAC V

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Reference Standard:

    UL,TUV

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4
