FX30B-5P-3.81DSA20 - Hirose

Description: Hirose FunctionMAX FX30B, 3.81mm Pitch, 5 Way, 1 Row, Straight PCB Header, Through Hole

Download FX30B-5P-3.81DSA20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

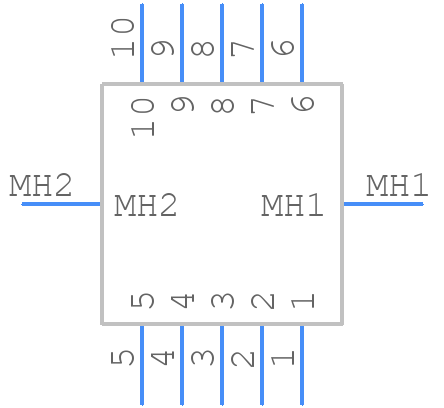

Symbol
FX30B-5P-3.81DSA20 - Hirose - PCB symbol
click to zoom

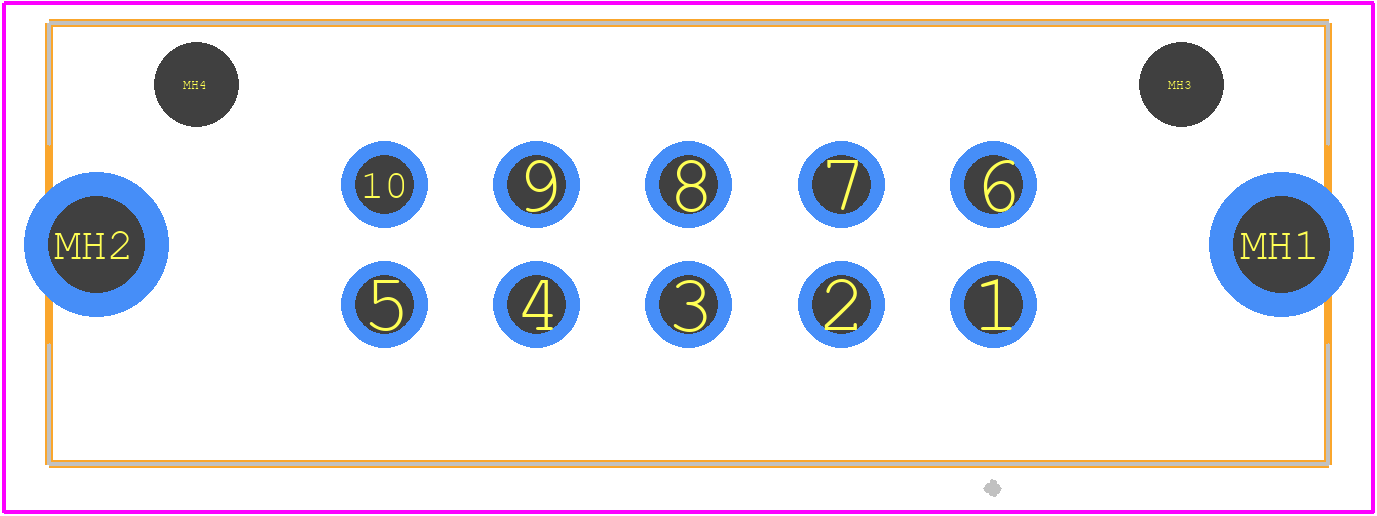

PCB Footprints
FX30B-5P-3.81DSA20 - Hirose PCB footprint - Other - Other - FX30B-5P-3.81DSA20-4
click to zoom
3D Models
FX30B-5P-3.81DSA20 - Hirose - 3D model - Other - FX30B-5P-3.81DSA20-4
click to zoom

FX30B-5P-3.81DSA20 Details

  • Manufacturer Part Number:

    FX30B-5P-3.81DSA20

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Board Mounting Option:

    SPLIT BOARD LOCK

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Arrangement:

    S0P5

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Material:

    NOT SPECIFIED

  • Contact Resistance:

    2 mΩ

  • Contact Style:

    BLADE PIN-SKT

  • Dielectric Withstanding Voltage:

    750VAC V

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYAMIDE

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Reference Standard:

    UL,TUV

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    5

FX30B-5P-3.81DSA20 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.5 N·m. However, it's essential to consult the datasheet and follow the manufacturer's guidelines for specific applications.
  • Yes, the FX30B-5P-3.81DSA20 is designed to withstand vibrations and shocks. However, it's crucial to ensure proper mounting and screw locking to maintain the connector's integrity.
  • The connector is rated for operating temperatures between -40°C to 105°C. However, it's essential to consult the datasheet and consider derating factors for high-temperature applications.
  • The connector is designed for a minimum of 500 mating cycles. However, the actual lifespan may vary depending on the application, usage, and environmental factors.
  • The connector has a IP67 rating, making it suitable for use in harsh environments. However, it's essential to ensure proper sealing and protection to maintain the connector's integrity.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX30B-5P-3.81DSA20 Overview

Use the download button to access the FX30B-5P-3.81DSA20 schematic symbol, PCB footprint, and 3D model.
