FX30B-5P-3.81DSA30 - Hirose

Description: Hirose FX30B Series, 3.81mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 10A , UL94 V-0 , 13A , 250V , -55°C ~ 105°C

Download FX30B-5P-3.81DSA30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

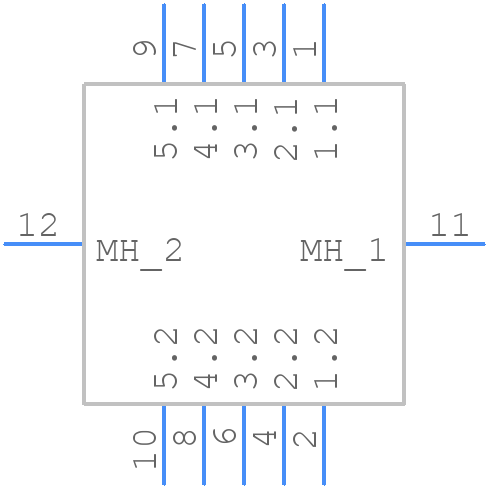

FX30B-5P-3.81DSA30 - Hirose - PCB symbol
click to zoom
PCB Footprints

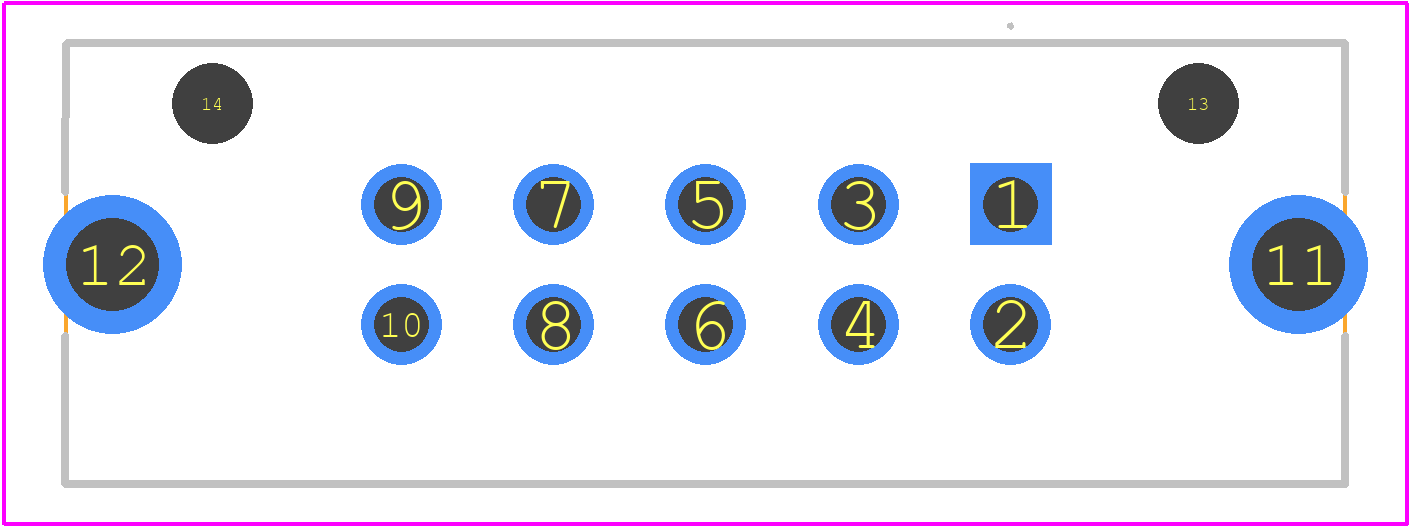

FX30B-5P-3.81DSA30 - Hirose PCB footprint - Other - Other - FX30B-5P-3.81DSA30-2
click to zoom
3D Models
FX30B-5P-3.81DSA30 - Hirose - 3D model - Other - FX30B-5P-3.81DSA30-2
click to zoom

FX30B-5P-3.81DSA30 Details

  • Manufacturer Part Number:

    FX30B-5P-3.81DSA30

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    AU

  • Contact Finish Termination:

    GOLD

  • Contact Material:

    COPPER ALLOY

  • JESD-609 Code:

    e4

FX30B-5P-3.81DSA30 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.5 N·m, but it's recommended to consult the datasheet or contact Hirose Electric Co Ltd for specific guidance.
  • Yes, the FX30B-5P-3.81DSA30 is designed to withstand vibrations and is suitable for use in high-vibration environments, but it's recommended to consult the datasheet and perform thorough testing to ensure reliability.
  • The operating temperature range for the FX30B-5P-3.81DSA30 is -40°C to 105°C, but it's recommended to consult the datasheet for specific temperature ratings and derating information.
  • Yes, the FX30B-5P-3.81DSA30 is compatible with lead-free soldering processes, but it's recommended to consult the datasheet and follow the recommended soldering profile to ensure reliability.
  • The recommended mating cycle for the FX30B-5P-3.81DSA30 is 500 cycles, but it's recommended to consult the datasheet and perform thorough testing to ensure reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX30B-5P-3.81DSA30 Overview

Use the download button to access the FX30B-5P-3.81DSA30 schematic symbol, PCB footprint, and 3D model.
