FX30B-5S-3.81DSA - Hirose

Description: Hirose FX30B Series 3.81mm Pitch 5 Way 1 Row Straight PCB Socket, Through Hole, Solder Termination

Download FX30B-5S-3.81DSA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

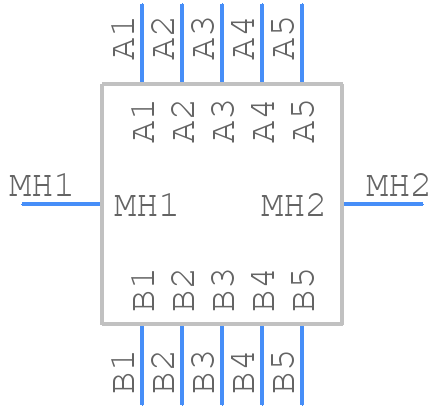

FX30B-5S-3.81DSA - Hirose - PCB symbol
click to zoom
PCB Footprints

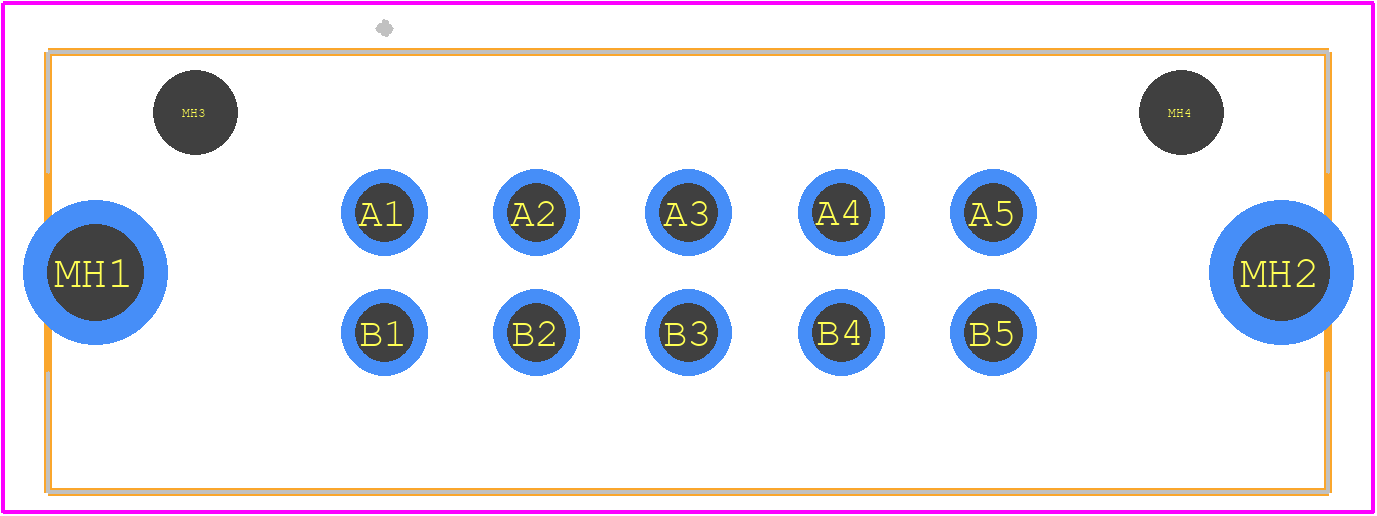

FX30B-5S-3.81DSA - Hirose PCB footprint - Other - Other - FX30B-5S-3.81DSA-2
click to zoom
3D Models
FX30B-5S-3.81DSA - Hirose - 3D model - Other - FX30B-5S-3.81DSA-2
click to zoom

FX30B-5S-3.81DSA Details

  • Manufacturer Part Number:

    FX30B-5S-3.81DSA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • Connector Type:

    BOARD STACKING CONNECTOR

FX30B-5S-3.81DSA Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5 N·m to 1.5 N·m (5 in·lb to 13 in·lb) for the screw locks.
  • Yes, the FX30B-5S-3.81DSA is designed to withstand vibrations and is suitable for use in high-vibration environments.
  • The operating temperature range for the FX30B-5S-3.81DSA is -40°C to 105°C (-40°F to 221°F).
  • Yes, the FX30B-5S-3.81DSA is compatible with lead-free soldering processes.
  • The mating cycle rating for the FX30B-5S-3.81DSA is 500 cycles.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX30B-5S-3.81DSA Overview

Use the download button to access the FX30B-5S-3.81DSA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX30B, or try a keyword search, such as Power Connectors
