The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m, as specified in the Hirose Electric Co Ltd's application notes.
Yes, the FX4C2-20S-1.27DSAL(71) is designed to withstand vibrations up to 10G (10-2000Hz) and shocks up to 100G (11ms), making it suitable for use in high-vibration environments.
The FX4C2-20S-1.27DSAL(71) has an operating temperature range of -40°C to 105°C and can withstand humidity up to 90% RH, making it suitable for use in harsh environments. However, it's recommended to consult with Hirose Electric Co Ltd's application engineers for specific environmental requirements.
The FX4C2-20S-1.27DSAL(71) has a mating cycle life of 500 cycles, as specified in the datasheet.
While it's possible to use the FX4C2-20S-1.27DSAL(71) with cables other than the recommended ones, it's not recommended as it may affect the connector's performance and reliability. It's best to use the recommended cables to ensure optimal performance.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
FX4C2-20S-1.27DSAL(71) Overview

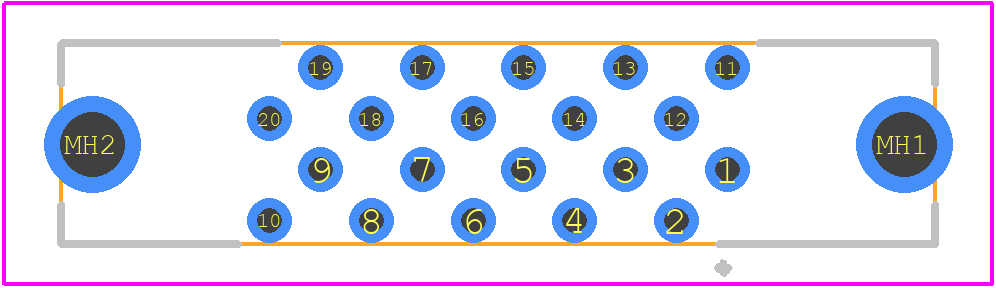

Use the download button to access the FX4C2-20S-1.27DSAL(71) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX4C2,
or try a keyword search, such as Headers and Edge Type Connectors
