FX614P3 - CML Micro

Description: IC, Driver Interface, FX614P3

Download FX614P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

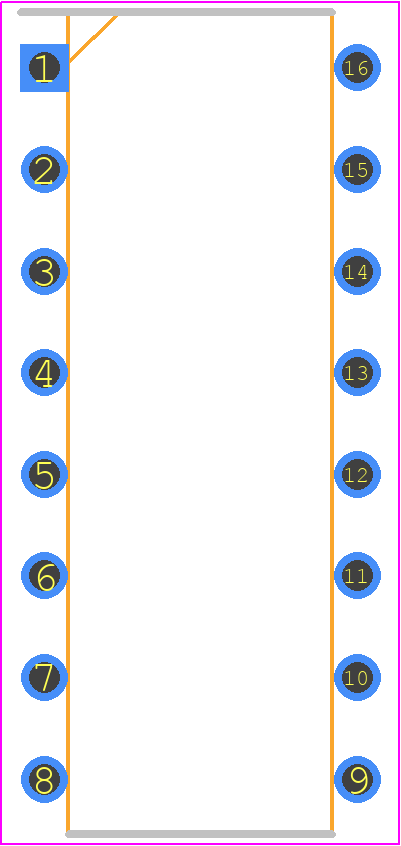

FX614P3 - CML Micro PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16 PIN DIL
click to zoom
3D Models
FX614P3 - CML Micro  - 3D model - Dual-In-Line Packages - 16 PIN DIL
click to zoom

FX614P3 Details

  • Manufacturer Part Number:

    FX614P3

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    PLASTIC, DIL-16

  • Pin Count:

    16

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    CML Microcircuits Plc

  • YTEOL:

    0

  • Data Rate:

    1 Mbps

  • JESD-30 Code:

    R-PDIP-T16

  • Length:

    19.685 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    4.45 mm

  • Supply Current-Max:

    0.0025 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Telecom IC Type:

    MODEM

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

FX614P3 Frequently Asked Questions (FAQs)

  • A good PCB layout for the FX614P3 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the antenna. Additionally, it's recommended to use a 50Ω transmission line impedance and to place the device as close as possible to the antenna.
  • To minimize power consumption, configure the FX614P3 to operate in the lowest possible frequency band, use the lowest possible transmission power, and enable the power-saving features such as the sleep mode and the automatic power-down mode. Additionally, optimize the data transmission rate and packet size to reduce the overall power consumption.
  • The FX614P3 is rated to operate within a temperature range of -40°C to +85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • To troubleshoot common issues with the FX614P3, start by checking the device's configuration and settings, ensuring that the device is properly configured and that the transmission power is set correctly. Next, check the antenna's performance and the PCB layout, ensuring that they are optimized for the device's operation. Finally, use debugging tools and software to analyze the device's performance and identify the root cause of the issue.
  • Yes, the FX614P3 is designed to meet the requirements of various regulatory standards, including FCC and CE. However, it's the responsibility of the system designer to ensure that the final product meets the specific regulatory requirements. CML Microcircuits Plc provides guidance and support to help designers meet these requirements.
