FX8C-140P-SV4(92) - Hirose

Description: Board to Board & Mezzanine Connectors 140P M STRAIGHT HDR BOARD VERT STACK CON

Download FX8C-140P-SV4(92) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FX8C-140P-SV4(92) - Hirose - PCB symbol
click to zoom
PCB Footprints

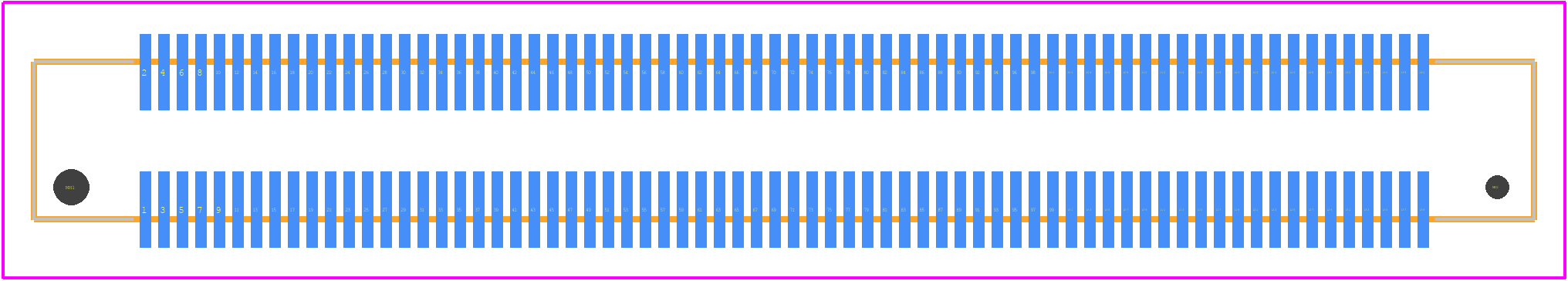

FX8C-140P-SV4(92) - Hirose PCB footprint - Other - Other - FX8C-140P-SV4(92)-2
click to zoom
3D Models
FX8C-140P-SV4(92) - Hirose - 3D model - Other - FX8C-140P-SV4(92)-2
click to zoom

FX8C-140P-SV4(92) Details

  • Manufacturer Part Number:

    FX8C-140P-SV4(92)

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    8

  • Additional Feature:

    LOW PROFILE

  • Connector Type:

    BOARD STACKING CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    0.6 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    140

  • UL Flammability Code:

    94V-0

FX8C-140P-SV4(92) Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, the FX8C-140P-SV4(92) connector is designed to withstand high-vibration environments. However, it's essential to follow the recommended torque values and mounting procedures to ensure reliable connections.
  • The maximum operating temperature for the FX8C-140P-SV4(92) connector is 125°C. Exceeding this temperature may affect the connector's performance and reliability.
  • The FX8C-140P-SV4(92) connector has a IP67 rating, which means it can withstand exposure to water and dust. However, it's not recommended for use in environments with exposure to harsh chemicals or extreme temperatures.
  • Use a soft, dry brush to remove any debris or dust from the connector. Avoid using harsh chemicals or solvents, as they may damage the connector's materials. For more thorough cleaning, use a gentle cleaning solution and a soft-bristled brush.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FX8C-140P-SV4(92) Overview

Use the download button to access the FX8C-140P-SV4(92) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FX8C-, or try a keyword search, such as Headers and Edge Type Connectors
