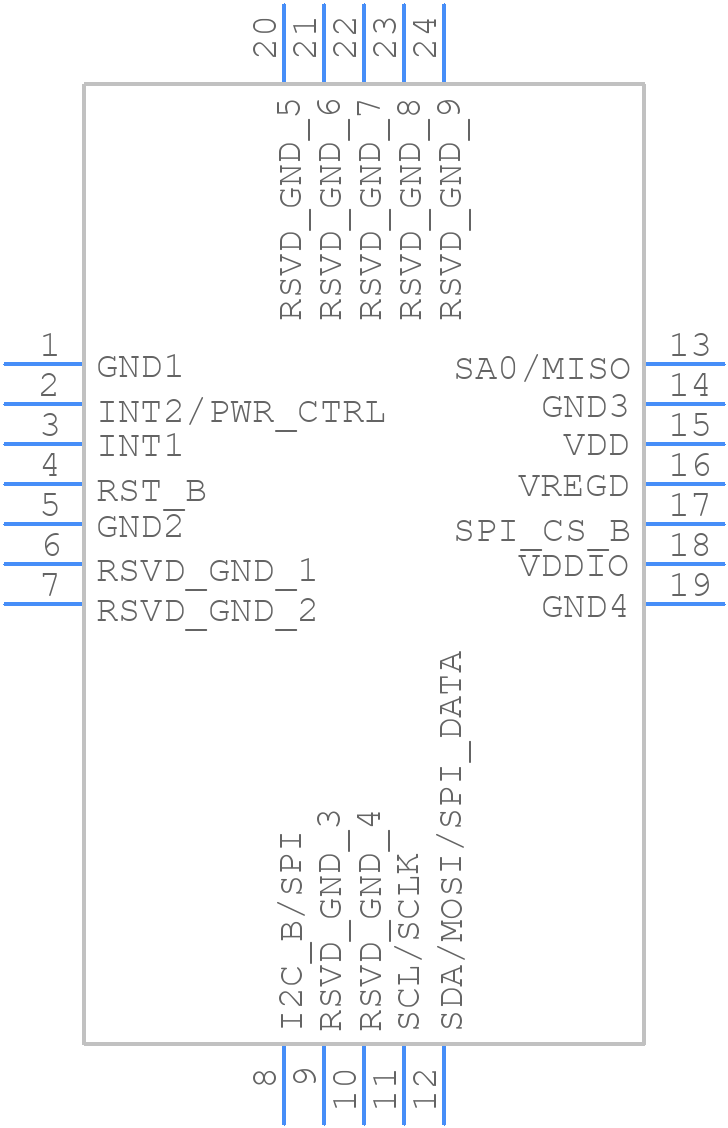

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for FXAS21002CQR1
- Part Number FXAS21002CQR1
- Manufacturer NXP
- Pin Count 24
- Part Category Integrated Circuit
- Package Category Pull-back Quad Flat No-lead
- Footprint Name Pull-back Quad Flat No-lead - FXAS21002CQR1
- Released Date May 2, 2016
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
FXAS21002CQR1 Details
-
Manufacturer Part Number:
FXAS21002CQR1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
End Of Life
-
Package Description:
4 X 4 MM, 1 MM HEIGHT, 0.50 MM PITCH, GREEN, PLASTIC, QFN-24
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Factory Lead Time:
4 Weeks
-
Manufacturer:
NXP Semiconductors
-
YTEOL:
0.4
-
Additional Feature:
ALSO REQUIRE INTERFACE VOLTAGE OF 1.62V TO 3.9V
-
Analog IC - Other Type:
ANALOG CIRCUIT
FXAS21002CQR1 Frequently Asked Questions (FAQs)
-
A good PCB layout for the FXAS21002CQR1 involves keeping the device away from noise sources, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and interference. A 4-layer PCB with a dedicated ground plane is recommended.
-
The FXAS21002CQR1 does not require calibration. It is a self-contained gyroscope that provides calibrated output data. However, it is recommended to perform a one-time initialization sequence to set the device's internal registers and configure the output data format.
-
The FXAS21002CQR1 is rated for operation from -40°C to 105°C. However, the device's accuracy and performance may degrade at extreme temperatures. It is recommended to operate the device within the 0°C to 70°C range for optimal performance.
-
The FXAS21002CQR1 is not designed for safety-critical applications. It is intended for use in consumer electronics and industrial applications. If you need a gyroscope for a safety-critical application, you should consider a device that is specifically designed and certified for such use cases.
-
The FXAS21002CQR1 communicates with a microcontroller through a standard I²C or SPI interface. You will need to connect the device's SCL/CLK and SDA/MOSI pins to the microcontroller's I²C or SPI pins, and configure the microcontroller's interface to match the device's communication protocol.
Trust Checks
Expert Contribution
System Verified
Community Approved
FXAS21002CQR1 Overview
Use the download button to access the FXAS21002CQR1 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FXAS2,
or try a keyword search, such as Other Signal Circuits
About NXP
NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more.
NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
