Description:Fully configurable, inputs and outputs track respective VCC levels; 4kV HBM ESD (per JESD22-A114 & Mil Std 883e 3015.7); Outputs remain in 3-STATE until active VCC level is reached; 8kV HBM I/O to GND ESD (per JESD22-A114 & Mil Std 883e 3015.7); Packaged in 14-terminal DQFN (2.5mm x 3.0mm) package; ESD protection exceeds:; One-way (unidirectional) translation between any 2 levels from 1.1V to 3.6V; 1kV CDM ESD (per ESD STM 5.3); Outputs switch to 3-STATE if either VCC is at GND; Control input (OE#) level is
A good PCB layout for the FXL5T244BQX involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the FXL5T244BQX, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 10uF and 100nF) as close as possible to the device's power pins. Also, ensure that the power and ground pins are connected to a solid power plane and ground plane, respectively.
The FXL5T244BQX can operate up to 100 MHz, but the actual maximum operating frequency depends on the specific application, PCB layout, and signal integrity. It's recommended to consult the datasheet and application notes for more information.
To handle thermal management for the FXL5T244BQX, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, follow the recommended thermal design guidelines in the datasheet and application notes.
The FXL5T244BQX has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. For latch-up prevention, ensure that the device is powered up and down slowly, and avoid voltage spikes or transients on the power and input pins.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FXL5T244BQX Overview

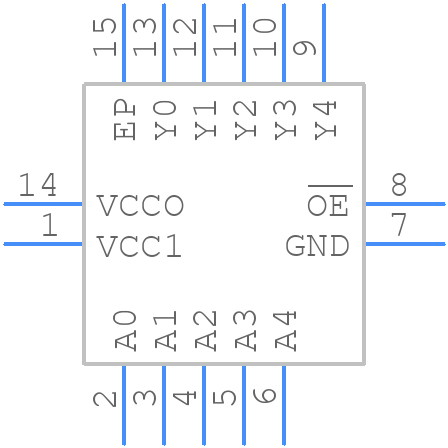

Use the download button to access the FXL5T244BQX schematic symbol, PCB footprint, and 3D model.
