FXL6408UMX - onsemi

Description: Interrupt Pin to Alert Processor of Status Changes; 8 Independently Configurable I/O Ports; 4X Expansion of Connected Processor I/O Ports; Selectable Device Address; Voltage Translation Capable from 1.65 V I2C Port Up to 4.0 V GPIO Pins; 6 mA Output Drive; Low-Power Quiescent Current: 1.5 µA; Fully Integrated I2C Slave

Download FXL6408UMX Model

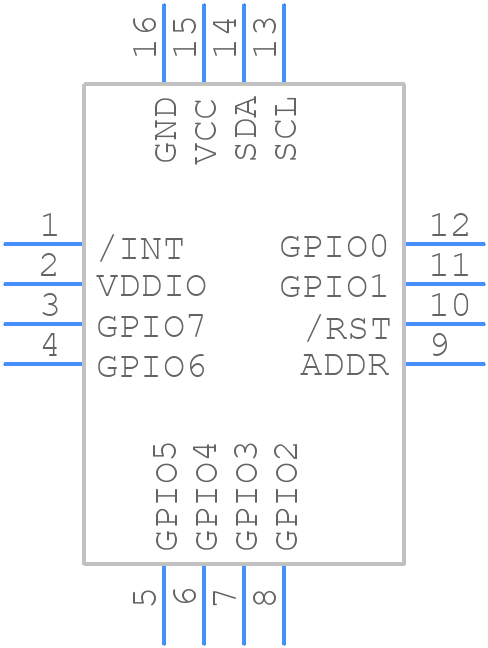

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FXL6408UMX - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead Ultrathin Molded Leadless Package (UMLP)
click to zoom
3D Models
FXL6408UMX - onsemi  - 3D model - Quad Flat No-Lead - 16-Lead Ultrathin Molded Leadless Package (UMLP)
click to zoom

FXL6408UMX Details

  • Manufacturer Part Number:

    FXL6408UMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-16

  • Package Description:

    UMLP-16

  • Manufacturer Package Code:

    523BF

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6.68

  • Clock Frequency-Max:

    0.4 MHz

  • JESD-30 Code:

    R-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    8

  • Number of I/O Lines:

    8

  • Number of Ports:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.65 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

  • uPs/uCs/Peripheral ICs Type:

    PARALLEL IO PORT, GENERAL PURPOSE

FXL6408UMX Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
  • Ensure proper thermal design, use a heat sink if necessary, and follow the recommended operating conditions. Also, consider using a thermal interface material to improve heat transfer between the device and the heat sink.
  • The maximum allowed voltage on the VIN pin is 5.5V. Exceeding this voltage may damage the device.
  • Yes, the FXL6408UMX is suitable for battery-powered devices due to its low quiescent current and high efficiency. However, ensure that the input voltage is within the recommended range and the device is properly bypassed.
  • The output voltage ripple can be calculated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
