FXLA104UM12X - onsemi

Description: Fairchild Semiconductor FXLA104UM12X, 6-channel, Voltage Level Translator, Voltage Translator, 3-State

Download FXLA104UM12X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

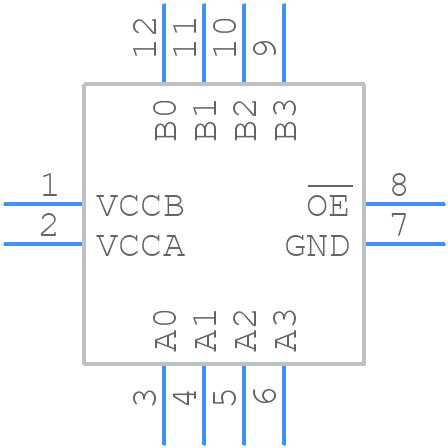

FXLA104UM12X - onsemi - PCB symbol
click to zoom
PCB Footprints
FXLA104UM12X - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UQFN12 1.8x1.8, 0.4P CASE 523BE ISSUE O
click to zoom
3D Models
FXLA104UM12X - onsemi - 3D model - Quad Flat No-Lead - UQFN12 1.8x1.8, 0.4P CASE 523BE ISSUE O
click to zoom

FXLA104UM12X Details

  • Manufacturer Part Number:

    FXLA104UM12X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-12

  • Package Description:

    UMLP-12

  • Manufacturer Package Code:

    523BE

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Delay-Max:

    8.5 ns

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    TTL/CMOS TO CMOS TRANSLATOR

  • JESD-30 Code:

    S-XQCC-N12

  • JESD-609 Code:

    e4

  • Length:

    1.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC12,.07SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    1.1 V

  • Supply Voltage1-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

FXLA104UM12X Frequently Asked Questions (FAQs)

  • A good PCB layout for the FXLA104UM12X involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The FXLA104UM12X requires a stable power supply with minimal noise and ripple. Use a high-quality voltage regulator and decouple the device with 10uF and 100nF capacitors in parallel, placed close to the device. Ensure the power supply can provide the required current.
  • The FXLA104UM12X is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. Ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • The FXLA104UM12X is a surface-mount device and can be susceptible to vibration-induced failure. Ensure the device is properly secured to the PCB using a robust mounting method, and consider using a vibration-dampening material or potting compound to minimize the effects of vibration.
  • To troubleshoot issues with the FXLA104UM12X, start by verifying the power supply and decoupling. Check for proper PCB layout and routing. Use an oscilloscope to monitor the input and output signals. Consult the datasheet and application notes for guidance on troubleshooting common issues.
