Part Image

FXLA104UMX - onsemi

Description: 8kV HBM (per JESD22-A114 & Mil Std 883e 3015.7) ; • Bi-Directional Interface between Two Levels: from 1.1V to 3.6V • Fully Configurable: Inputs and Outputs Track VCC • Non-Preferential Power-Up; Either VCC May Be Powered Up First • Outputs Switch to 3-State if Either VCC is at GND • Power-Off Protection • Bus-Hold on Data Inputs Eliminates the Need for Pull-Up Resistors; Do Not Use Pull-Up Resistors • Control Input (/OE) Referenced to VCCA Voltage • Available in 16-Terminal µMLP (1.8mm x 2.6mm) and 12-Termi

Download FXLA104UMX Model

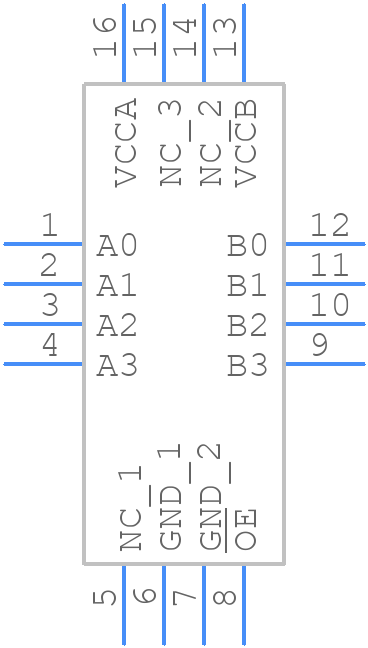

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FXLA104UMX - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 16-Lead, UMLP, QUAD, Ultra-Thin MLP, 1.8 X 2.6mm
click to zoom
3D Models
FXLA104UMX - onsemi  - 3D model - Quad Flat No-Lead - 16-Lead, UMLP, QUAD, Ultra-Thin MLP, 1.8 X 2.6mm
click to zoom

FXLA104UMX Details

  • Manufacturer Part Number:

    FXLA104UMX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-16

  • Package Description:

    MICRO MLP-16

  • Manufacturer Package Code:

    523BF

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Delay-Max:

    8.5 ns

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    TTL/CMOS TO CMOS TRANSLATOR

  • JESD-30 Code:

    R-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    2.6 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Latch or Register:

    NONE

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC16,.07X.1,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.55 mm

  • Supply Current-Max:

    100 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.2 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    1.1 V

  • Supply Voltage1-Nom:

    1.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.8 mm

FXLA104UMX Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and crosstalk.
  • Use a low-ESR capacitor (e.g., 10uF) between VCC and GND, and a 1uF capacitor between VIN and GND. Place these capacitors close to the device. Ensure the power supply can provide the required current.
  • The FXLA104UMX supports cable lengths up to 3 meters (10 feet) for USB 2.0 and 1 meter (3.3 feet) for USB 3.2 Gen 1. Longer cables may require repeaters or active cables.
  • Set the MODE pin to HIGH and the SPEED pin to LOW. Ensure the system can provide the required 5V, 3A power. Use a USB 3.2 Gen 2-compliant cable and a compatible host controller.
  • The FXLA104UMX operates from -40°C to 85°C (industrial temperature range). Ensure proper thermal design and heat dissipation to maintain reliable operation.
