FXLN8361QR1 - NXP

Description: Accelerometers 1.71-3.6V XYZ 2/8g low bandwidth

Download FXLN8361QR1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

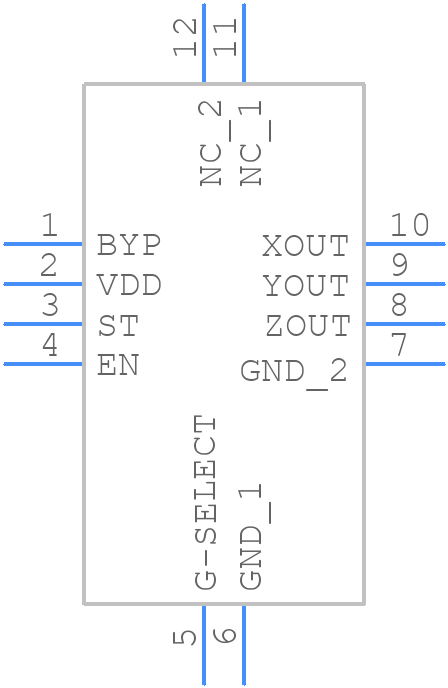

FXLN8361QR1 - NXP - PCB symbol
click to zoom
PCB Footprints
FXLN8361QR1 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Case 2300-01
click to zoom
3D Models
FXLN8361QR1 - NXP - 3D model - Quad Flat No-Lead - Case 2300-01
click to zoom

FXLN8361QR1 Details

  • Manufacturer Part Number:

    FXLN8361QR1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    QFN-12

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

  • Body Breadth:

    3 mm

  • Body Height:

    0.95 mm

  • Body Length or Diameter:

    3 mm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    UNSPECIFIED

  • Package Equivalence Code:

    LCC12,.12SQ,25

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

FXLN8361QR1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the FXLN8361QR1 involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the antenna. A 4-layer PCB with a dedicated ground plane is recommended.
  • The FXLN8361QR1 requires a stable power supply with minimal noise and ripple. Use a high-quality voltage regulator and decouple the power pins with 10uF and 100nF capacitors in parallel to ensure proper operation.
  • A quarter-wave monopole antenna or a dipole antenna with a length of around 17mm is recommended for optimal performance with the FXLN8361QR1. The antenna should be matched to the device's output impedance for maximum efficiency.
  • The transmission power and range of the FXLN8361QR1 can be optimized by adjusting the output power level, transmission frequency, and data rate. Consult the datasheet and application notes for specific configuration guidelines.
  • The FXLN8361QR1 has a maximum junction temperature of 150°C. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or a heat sink for high-power applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FXLN8361QR1 Overview

Use the download button to access the FXLN8361QR1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FXLN8, or try a keyword search, such as Other Sensors/Transducers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
