FXLS8961AFR1 - NXP

Description: Accelerometers 3-axis MEMS accelerometer designed for automotive security and convenience applications 1.71V ~ 3.6V 1.6kHz -40°C ~ 105°C

Download FXLS8961AFR1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

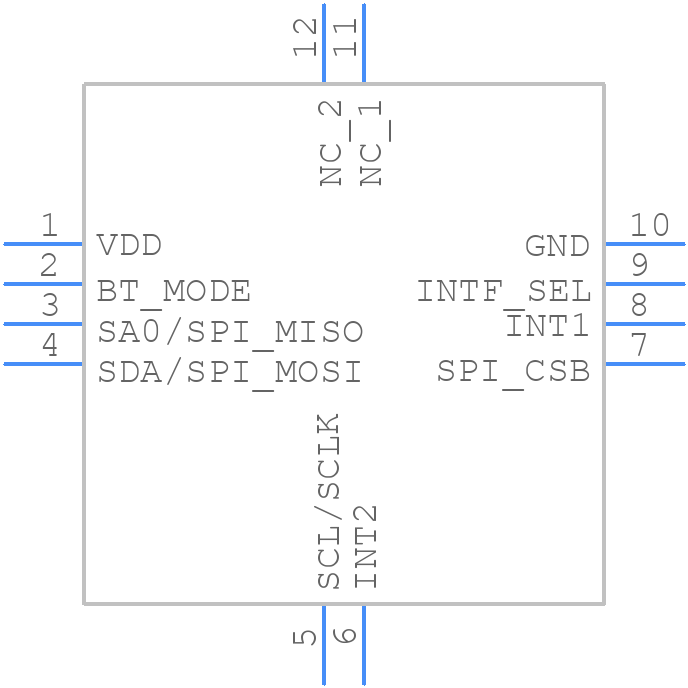

FXLS8961AFR1 - NXP - PCB symbol
click to zoom
PCB Footprints
FXLS8961AFR1 - NXP PCB footprint - Other - Other - DLQFN12 (SOT2197-1(SC))
click to zoom
3D Models
FXLS8961AFR1 - NXP - 3D model - Other - DLQFN12 (SOT2197-1(SC))
click to zoom

FXLS8961AFR1 Details

  • Manufacturer Part Number:

    FXLS8961AFR1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    13

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Terminal Finish:

    Tin (Sn)

FXLS8961AFR1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a dedicated ground plane and careful routing of sensitive signals is recommended. NXP provides a reference design and layout guidelines in the FXLS8961AFR1 evaluation board documentation.
  • Calibration involves adjusting the sensitivity and offset registers. NXP provides a calibration procedure in the datasheet, and the FXLS8961AFR1 evaluation board software includes a calibration tool.
  • The FXLS8961AFR1 is rated for operation from -40°C to 125°C, but the accuracy and sensitivity may degrade at extreme temperatures. Consult the datasheet for temperature-related specifications.
  • The FXLS8961AFR1 is designed for 1.8V to 3.6V power supply operation. Using a 3.3V or 5V power supply may exceed the maximum rating and affect performance or reliability.
  • The FXLS8961AFR1 communicates via a standard I²C or SPI interface. Consult the datasheet for pinout and protocol information, and use a microcontroller with a compatible interface.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FXLS8961AFR1 Overview

Use the download button to access the FXLS8961AFR1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FXLS8, or try a keyword search, such as Other Sensors/Transducers

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
