FXLS8971CFR1 - NXP

Description: Accelerometers 3-axis MEMS accelerometer designed for a wide range of industrial and medical IoT applications

Download FXLS8971CFR1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

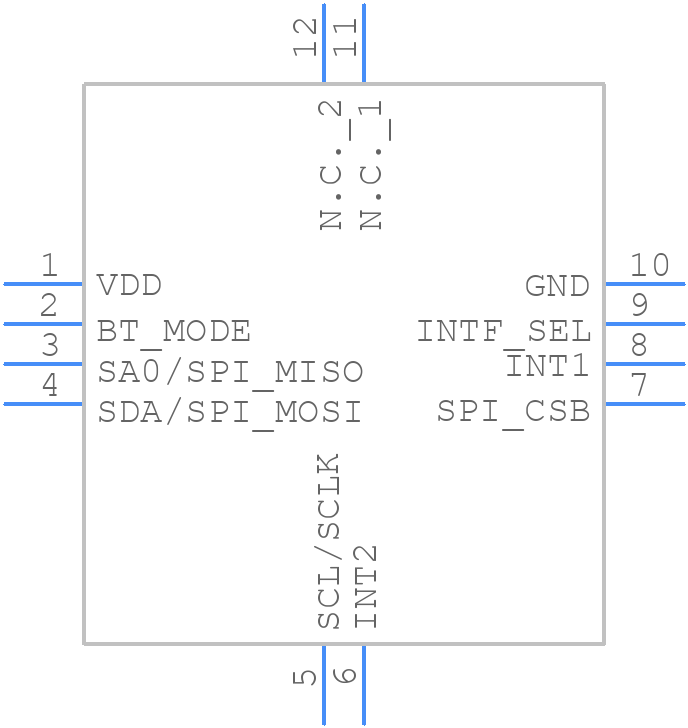

Symbol
FXLS8971CFR1 - NXP - PCB symbol
click to zoom
PCB Footprints
FXLS8971CFR1 - NXP PCB footprint - Other - Other - SOT2197-1(SC)_2025-1.1
click to zoom
3D Models
FXLS8971CFR1 - NXP - 3D model - Other - SOT2197-1(SC)_2025-1.1
click to zoom

FXLS8971CFR1 Details

  • Manufacturer Part Number:

    FXLS8971CFR1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    8

  • Body Breadth:

    3 mm

  • Body Height:

    1.3 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    OPEN-DRAIN

  • Output Range:

    0.3-2.7V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC12,.12SQ,25

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

FXLS8971CFR1 Frequently Asked Questions (FAQs)

  • NXP provides a recommended PCB layout in the FXLS8971CFR1 evaluation board documentation. It's essential to follow this layout to minimize noise, ensure proper grounding, and optimize signal integrity.
  • Calibration involves adjusting the sensitivity and offset registers to compensate for variations in the sensor and PCB. NXP provides a calibration procedure in the datasheet, which involves applying a known magnetic field and adjusting the registers accordingly.
  • The FXLS8971CFR1 is rated for operation from -40°C to 125°C. However, it's essential to note that the sensor's accuracy and sensitivity may degrade at extreme temperatures. Consult the datasheet for more information on temperature-related specifications.
  • Yes, the FXLS8971CFR1 is designed to operate in high-vibration environments. However, it's crucial to ensure proper mounting and mechanical stability to prevent damage to the sensor or PCB. Consult the datasheet for more information on vibration-related specifications.
  • The FXLS8971CFR1 communicates via a standard I²C interface. You'll need to connect the SCL and SDA pins to your microcontroller's I²C bus and use a compatible I²C library to read and write data to the sensor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FXLS8971CFR1 Overview

Use the download button to access the FXLS8971CFR1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FXLS8, or try a keyword search, such as Other Sensors/Transducers
