FXMA2102L8X - onsemi

Description: Open-Drain Inputs / Outputs ; I2C 400pF Buffer / Repeater ; Control INput (/OE) Referenced to VCCA; Tolerant Output Enable: 5V ; Packaged in 8-Terminal Leadless MicroPak™ (1.6mm x 1.6mm) and Ultrathin MLP (1.2mm x 1.4m) ; A/B Port VOL = 175mV (Typical), VIL = 150mV, IOL = 6mA ; Non-Preferential Power-Up; Either VCC May Be Powered-Up First ; I2C Bus Isolation ; ESD Protection Exceeds: ; System GPIO Resources Not Required when OE Tied to VCCA ; 8kV HBM ESD (per JESD22-A114 & Mil Std 883e 3015.7) ; Accommodate

Download FXMA2102L8X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

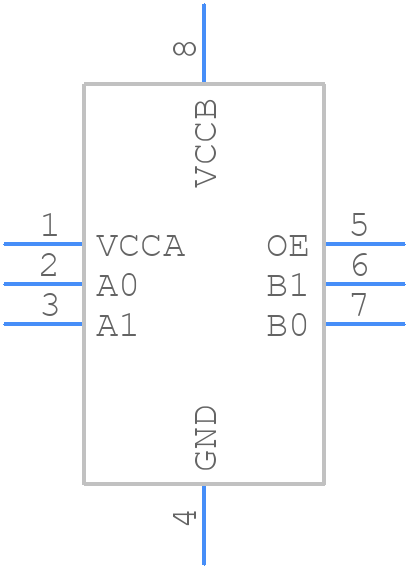

Symbol
FXMA2102L8X - onsemi - PCB symbol
click to zoom
PCB Footprints
FXMA2102L8X - onsemi PCB footprint - Pull-back Quad Flat No-lead - Pull-back Quad Flat No-lead - (QFN)MicroPak_8L
click to zoom
3D Models
FXMA2102L8X - onsemi - 3D model - Pull-back Quad Flat No-lead - (QFN)MicroPak_8L
click to zoom

FXMA2102L8X Details

  • Manufacturer Part Number:

    FXMA2102L8X

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    UQFN-8

  • Package Description:

    MICROPAK-8

  • Manufacturer Package Code:

    523AY

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    6

FXMA2102L8X Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • The FXMA2102L8X requires a 3.3V or 5V power supply. Ensure the power supply is clean and regulated, and decouple the power pins with 10uF and 100nF capacitors.
  • The FXMA2102L8X can operate from -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's essential to ensure proper thermal management.
  • Use ESD protection devices such as TVS diodes or ESD arrays on the input and output lines to protect the FXMA2102L8X from electrostatic discharge.
  • Use a 50Ω termination resistor on the input and output lines to ensure proper signal integrity and minimize reflections.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FXMA2102L8X Overview

Use the download button to access the FXMA2102L8X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FXMA2, or try a keyword search, such as Other Interface ICs
