A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and crosstalk.
Monitor the input voltage, output current, and junction temperature to ensure they are within the recommended ranges. Use thermal management techniques, such as heat sinks or thermal interfaces, to keep the junction temperature below 125°C.
Handle the device by the body or pins, avoiding direct contact with the die. Use an ESD wrist strap or mat, and store the device in an anti-static bag or container. Follow the recommended soldering and desoldering procedures to prevent damage.
Yes, the FXMAR2102UMX-F106 is qualified for automotive and high-reliability applications. However, ensure you follow the recommended design and manufacturing guidelines, and consult with onsemi's application engineers for specific requirements and certifications.
Use an oscilloscope to monitor the input and output waveforms, and check for noise, ringing, or oscillations. Verify the PCB layout, component values, and soldering quality. Consult the datasheet and application notes for troubleshooting guidelines and contact onsemi's technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FXMAR2102UMX-F106 Overview

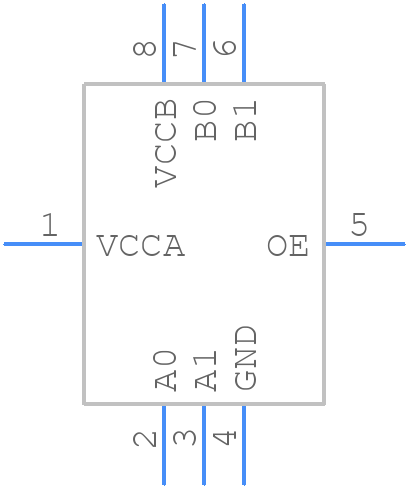

Use the download button to access the FXMAR2102UMX-F106 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FXMAR,
or try a keyword search, such as Level Translators
