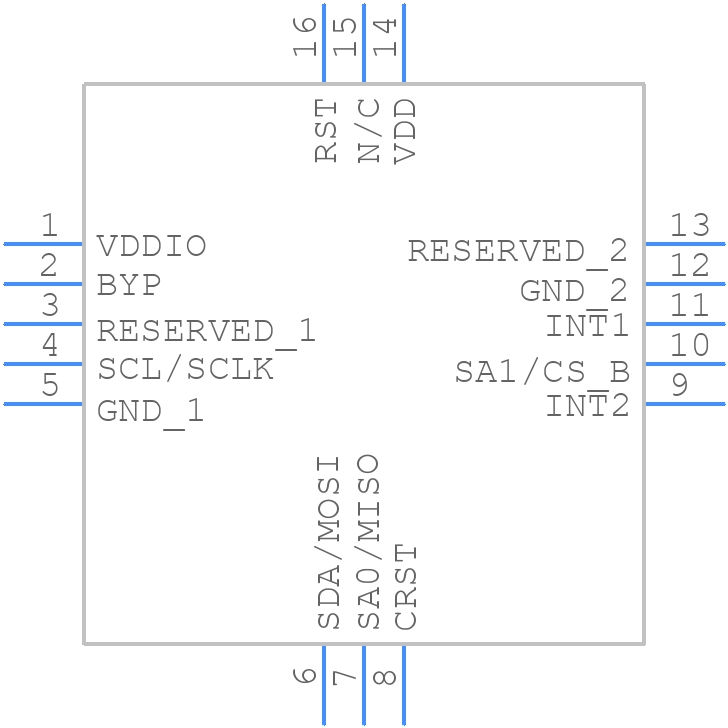

FXOS8700CQR1 - NXP

FXOS8700CQR1 Frequently Asked Questions (FAQs)

• What is the recommended power-on sequence for the FXOS8700CQR1?
  The recommended power-on sequence is to power up the VDDIO pin first, followed by the VDD pin. This ensures that the internal voltage regulators are properly initialized.
• How do I configure the FXOS8700CQR1 for high-accuracy mode?
  To configure the FXOS8700CQR1 for high-accuracy mode, set the HYST (hysteresis) bit in the CTRL_REG1 register to 1, and set the F_READ (fast read) bit to 0. This will enable high-accuracy mode, which provides better noise performance and higher resolution.
• What is the purpose of the NO_OP (no operation) command in the FXOS8700CQR1?
  The NO_OP command is used to reset the internal state machine of the FXOS8700CQR1. It can be used to recover from an unknown or error state, or to reset the device after a power-on reset.
• How do I handle interrupts generated by the FXOS8700CQR1?
  Interrupts generated by the FXOS8700CQR1 can be handled by configuring the INT_PIN_CFG register to select the interrupt pin and the interrupt mode. The interrupt service routine should clear the interrupt source by reading the INT_SOURCE register and taking the necessary action.
• What is the maximum frequency of the FXOS8700CQR1's I2C interface?
  The maximum frequency of the FXOS8700CQR1's I2C interface is 400 kHz. However, the device can also operate at lower frequencies, such as 100 kHz or 50 kHz, depending on the system requirements.
