FXTH870911DT1 - NXP

Description: Pressure Sensor, Accelerometer and Temperature Sensor Automotive 24-Pin QFN EP T/R

Download FXTH870911DT1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

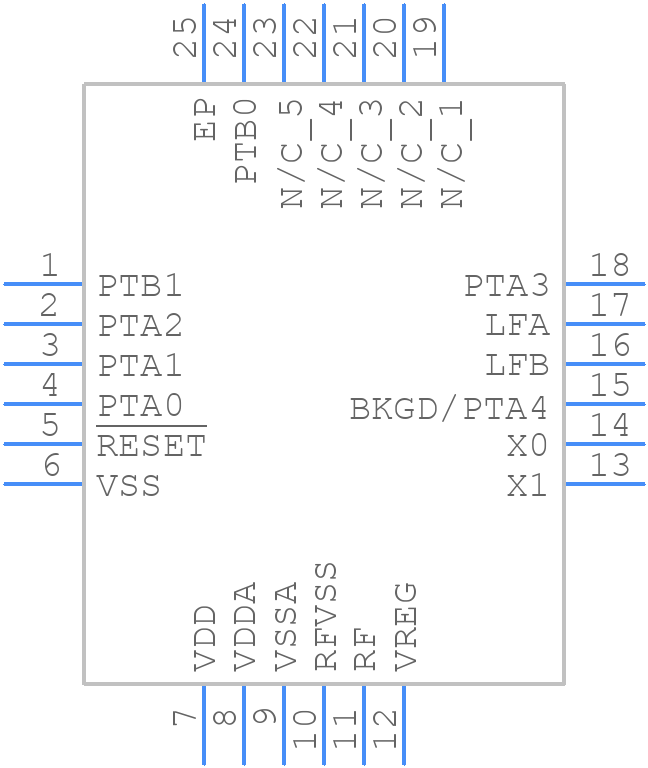

FXTH870911DT1 - NXP - PCB symbol
click to zoom
PCB Footprints
FXTH870911DT1 - NXP PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - SOT1575-1
click to zoom
3D Models
FXTH870911DT1 - NXP - 3D model - Quad Flat No-Lead - SOT1575-1
click to zoom

FXTH870911DT1 Details

  • Manufacturer Part Number:

    FXTH870911DT1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-06-05

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    0

FXTH870911DT1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the layout symmetrical and avoid vias under the device. Refer to the NXP application note AN11555 for more details.
  • Configure the device in low-power mode (LPM) by setting the LPM pin high. Additionally, adjust the transmit power level and data rate according to your application's requirements. Refer to the datasheet section 7.3 for more information.
  • A quarter-wavelength monopole antenna or a chip antenna with a 50-ohm impedance is recommended. The antenna should be matched to the device's output impedance (50 ohms) for optimal performance. Refer to the NXP application note AN11555 for more details.
  • Use a spectrum analyzer to verify the transmission frequency and power level. Check the device's configuration and register settings. Verify the antenna design and PCB layout. Refer to the datasheet section 10 for troubleshooting guidelines.
  • The FXTH870911DT1 operates within a temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures. Refer to the datasheet section 6.1 for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FXTH870911DT1 Overview

Use the download button to access the FXTH870911DT1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FXTH8, or try a keyword search, such as Pressure Sensors

About NXP

NXP Semiconductors is a leading manufacturer of semiconductor devices with a wide range of semiconductor solutions, including microcontrollers, sensors, connectivity solutions, power management ICs, and security solutions. These products are used in a variety of applications such as automotive, industrial automation, smart homes, mobile devices, and more. NXP Semiconductors is one of the world’s largest semiconductor companies and is headquartered in Eindhoven, the Netherlands.
