For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a solid ground plane on the bottom layer. This helps to dissipate heat efficiently. Additionally, ensure that the PCB has adequate copper thickness and use thermal vias to connect the top and bottom layers.
To ensure reliable operation across the full temperature range, ensure that the device is operated within the recommended voltage and current ratings. Also, consider the thermal derating curve and ensure that the device is properly heatsinked. Finally, follow the recommended PCB layout and assembly guidelines to minimize thermal resistance.
The FY2500117 has built-in ESD protection diodes on the input pins, which can withstand up to 2kV of electrostatic discharge. To prevent latch-up, ensure that the device is operated within the recommended voltage and current ratings, and avoid applying voltage to the output pins before powering up the device.
Yes, the FY2500117 is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive-grade components. However, ensure that you follow the recommended operating conditions, PCB layout, and assembly guidelines to ensure reliable operation.
To prevent damage, store the FY2500117 in a dry, cool place away from direct sunlight. Handle the device by the body, avoiding touching the pins or leads. Use anti-static wrist straps or mats when handling the device, and avoid bending or flexing the leads.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FY2500117 Overview

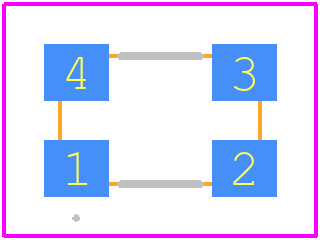

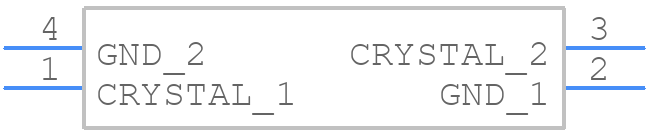

Use the download button to access the FY2500117 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FY250,
or try a keyword search, such as Quartz Crystals
