A good PCB layout for the FY2500126 should consider the following: keep the input and output traces short and separate, use a solid ground plane, and place decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper power-up and power-down, follow these guidelines: apply power to the VIN pin first, then to the EN pin. During power-down, remove power from the EN pin first, then from the VIN pin. This sequence helps prevent unwanted voltage transients and ensures a clean shutdown.
The FY2500126 can drive a maximum capacitive load of 10nF. Exceeding this limit may cause instability or oscillations in the output voltage. If a larger capacitive load is required, consider adding a series resistor or using a different device.
To manage thermal issues, ensure good airflow around the device, and consider using a heat sink or thermal pad. The device's thermal pad should be connected to a solid ground plane to help dissipate heat. Keep the ambient temperature below 85°C to prevent thermal shutdown.
While the datasheet specifies a minimum input voltage of 2.5V, it's recommended to operate the device with an input voltage between 2.7V and 5.5V for optimal performance and stability. Operating outside this range may affect the device's efficiency and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FY2500126 Overview

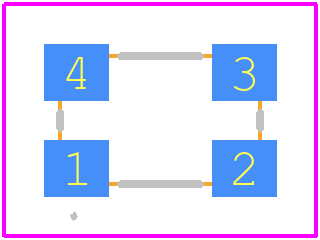

Use the download button to access the FY2500126 schematic symbol, PCB footprint, and 3D model.
