A good PCB layout for the FZT1051ATA should include a solid ground plane, wide power traces, and a thermal relief pattern under the IC. This helps to reduce thermal resistance and ensures efficient heat dissipation.
To ensure the FZT1051ATA operates within the SOA, monitor the device's voltage, current, and power dissipation. Use the datasheet's SOA graph to determine the maximum allowable voltage and current for a given temperature range.
Handle the FZT1051ATA with ESD-protective equipment and follow standard ESD handling procedures. The device has built-in ESD protection, but it's still important to take precautions to prevent damage during handling and assembly.
The FZT1051ATA is rated for operation up to 150°C. However, it's essential to consider the device's power dissipation, thermal resistance, and package type when designing for high-temperature applications.
To troubleshoot issues with the FZT1051ATA, start by verifying the device's pin connections, voltage supply, and thermal conditions. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FZT1051ATA Overview

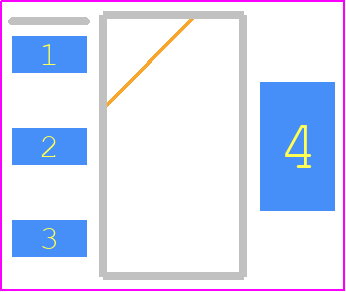

Use the download button to access the FZT1051ATA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FZT10,
or try a keyword search, such as Power Bipolar Transistors
