The recommended operating temperature range for FZT600BTA is -55°C to 150°C, but it's essential to note that the device's performance may degrade at extreme temperatures.
To ensure proper biasing, follow the recommended voltage and current ratings in the datasheet. Typically, a voltage regulator or a resistive divider network is used to set the bias voltage. Additionally, ensure the input and output capacitors are properly selected to minimize noise and oscillations.
For optimal performance, keep the PCB layout as compact as possible, and ensure the input and output traces are short and wide to minimize inductance. Also, use a solid ground plane and decouple the device with a 10nF to 100nF capacitor to reduce noise and oscillations.
To prevent electrostatic discharge (ESD) damage, handle the device by the body or use an anti-static wrist strap. Ensure the PCB has ESD protection diodes or resistors, and consider adding a TVS (Transient Voltage Suppressor) diode for additional protection.
The FZT600BTA has a typical lifespan of 10 to 15 years, depending on operating conditions. To ensure reliability, follow the recommended operating conditions, and consider implementing a failure detection and redundancy mechanism in your design.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FZT600BTA Overview

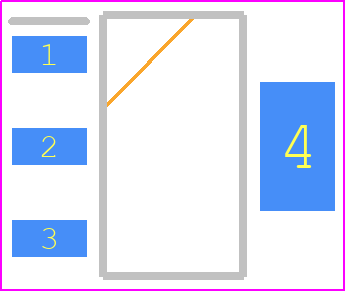

Use the download button to access the FZT600BTA schematic symbol, PCB footprint, and 3D model.
