FZT605TA - Diodes Incorporated

Description: Diodes Inc FZT605TA NPN Darlington Transistor, 1.5 A 120 V HFE:500, 4-Pin SOT-223

Download FZT605TA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

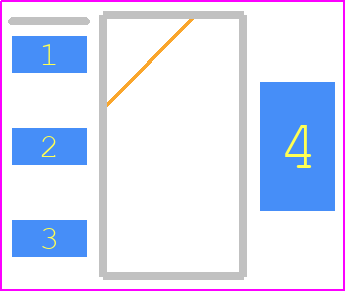

FZT605TA - Diodes Incorporated PCB footprint - SOT223 (3-Pin) - SOT223 (3-Pin) - 3-Pin SOT-22AA3wwxxhhddd
click to zoom
3D Models
FZT605TA - Diodes Incorporated  - 3D model - SOT223 (3-Pin) - 3-Pin SOT-22AA3wwxxhhddd
click to zoom

FZT605TA Details

  • Manufacturer Part Number:

    FZT605TA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-223

  • Pin Count:

    4

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    1.5 A

  • Collector-Emitter Voltage-Max:

    120 V

  • Configuration:

    DARLINGTON

  • DC Current Gain-Min (hFE):

    2000

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    150 MHz

FZT605TA Frequently Asked Questions (FAQs)

  • A good PCB layout for the FZT605TA should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device. A minimum of 2oz copper thickness is recommended. Refer to the Diodes Incorporated application note AN-114 for more details.
  • The FZT605TA requires a bias voltage of 2.5V to 5.5V. Ensure the bias voltage is stable and noise-free. A decoupling capacitor of 10nF to 100nF should be placed close to the device to filter out high-frequency noise.
  • The FZT605TA has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade above 85°C. Ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • The FZT605TA is optimized for low-frequency applications up to 100kHz. While it can be used in high-frequency applications, its performance may degrade above 1MHz. Consider using a different device or consulting with a Diodes Incorporated application engineer for high-frequency applications.
  • The FZT605TA has an internal ESD protection diode, but additional protection may be necessary. Use a TVS diode or a zener diode to protect against overvoltage and ESD events. Ensure the protection device is rated for the maximum voltage and current of the application.
