The recommended operating voltage range for the FZT753TA is 2.7V to 5.5V, as specified in the datasheet. However, it's essential to note that the device can tolerate a maximum voltage of 6V for short durations, but prolonged exposure may affect its reliability.
To ensure proper biasing, follow the recommended operating conditions outlined in the datasheet. Typically, this involves connecting the input pin to a voltage source through a resistor, and the output pin to a load or another circuit component. Additionally, ensure the device is operated within the recommended temperature range of -40°C to 125°C.
The maximum current rating for the FZT753TA is 1A, as specified in the datasheet. However, it's essential to consider the device's power dissipation and thermal characteristics to ensure reliable operation. Exceeding the maximum current rating may lead to device failure or reduced lifespan.
While the FZT753TA is primarily designed for low-frequency applications, it can be used in high-frequency applications with proper design considerations. However, the device's frequency response and parasitic capacitance may affect its performance at higher frequencies. Consult the datasheet and application notes for guidance on high-frequency design.
The FZT753TA has built-in ESD protection, but it's still essential to follow proper handling and storage procedures to prevent damage. Use anti-static wrist straps, mats, and packaging materials to minimize the risk of ESD damage. Additionally, ensure the device is properly grounded during handling and assembly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FZT753TA Overview

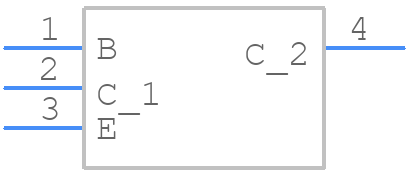

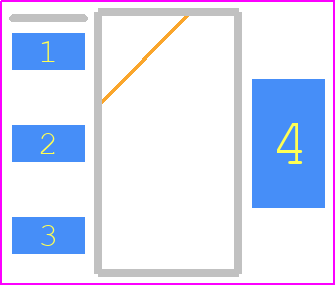

Use the download button to access the FZT753TA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FZT75,
or try a keyword search, such as Power Bipolar Transistors
