FZT857TA - Diodes Incorporated

Description: Diodes Inc FZT857TA NPN Transistor, 3.5 A, 300 V, 3 + Tab-Pin SOT-223

Download FZT857TA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

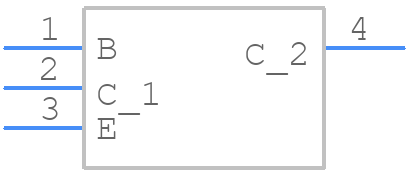

FZT857TA - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints

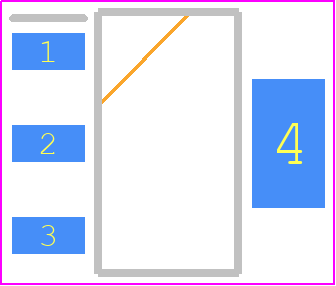

FZT857TA - Diodes Incorporated PCB footprint - SOT223 (3-Pin) - SOT223 (3-Pin) - SOT223
click to zoom
3D Models
FZT857TA - Diodes Incorporated - 3D model - SOT223 (3-Pin) - SOT223
click to zoom

FZT857TA Details

  • Manufacturer Part Number:

    FZT857TA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    3.5 A

  • Collector-Emitter Voltage-Max:

    300 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    100

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    80 MHz
