FZT951QTA - Diodes Incorporated

Description: Trans GP BJT PNP 60V 5A 3000mW Automotive 4-Pin(3+Tab) SOT-223 T/R

Download FZT951QTA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FZT951QTA - Diodes Incorporated - PCB symbol
click to zoom
PCB Footprints

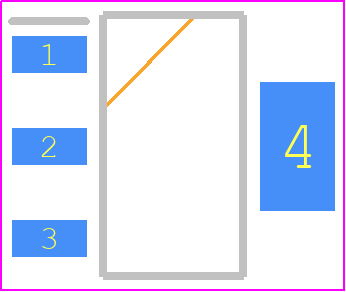

FZT951QTA - Diodes Incorporated PCB footprint - SOT223 (3-Pin) - SOT223 (3-Pin) - FZT951QTA-
click to zoom
3D Models
FZT951QTA - Diodes Incorporated - 3D model - SOT223 (3-Pin) - FZT951QTA-
click to zoom

FZT951QTA Details

  • Manufacturer Part Number:

    FZT951QTA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    4

  • Additional Feature:

    HIGH RELIABILITY

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    5 A

  • Collector-Emitter Voltage-Max:

    60 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    10

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    120 MHz

FZT951QTA Frequently Asked Questions (FAQs)

  • A good PCB layout for the FZT951QTA should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2oz copper thickness is recommended.
  • To ensure proper biasing, the FZT951QTA requires a stable input voltage (VIN) between 2.5V and 5.5V, and a bias voltage (VBIAS) between 1.2V and 3.3V. The bias voltage should be decoupled with a 1uF capacitor to minimize noise.
  • The maximum allowable power dissipation for the FZT951QTA is 1.5W. Exceeding this limit may cause the device to overheat, leading to reduced performance or even failure.
  • To protect the FZT951QTA from ESD and overvoltage, it is recommended to use a TVS diode or a zener diode on the input lines, and to ensure that the input voltage does not exceed the maximum rating of 5.5V.
  • The recommended operating temperature range for the FZT951QTA is -40°C to 125°C. Operating the device outside this range may affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FZT951QTA Overview

Use the download button to access the FZT951QTA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FZT95, or try a keyword search, such as Power Bipolar Transistors
