FZT953TA - Diodes Incorporated

Description: PNP transistor,SOT223,FZT953 5A Diodes Inc FZT953TA PNP Bipolar Transistor, 5 A, 100 V SOT-223

Download FZT953TA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

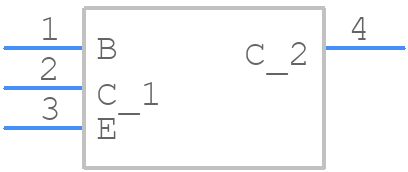

Symbol
FZT953TA - Diodes Incorporated - PCB symbol
click to zoom

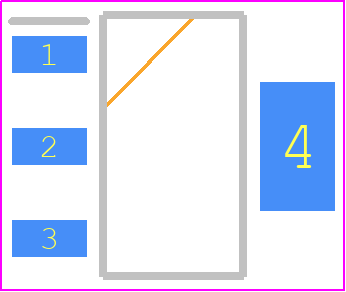

PCB Footprints
FZT953TA - Diodes Incorporated PCB footprint - SOT223 (3-Pin) - SOT223 (3-Pin) - FZT1051ATA
click to zoom
3D Models
FZT953TA - Diodes Incorporated - 3D model - SOT223 (3-Pin) - FZT1051ATA
click to zoom

FZT953TA Details

  • Manufacturer Part Number:

    FZT953TA

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    4

  • Case Connection:

    COLLECTOR

  • Collector Current-Max (IC):

    5 A

  • Collector-Emitter Voltage-Max:

    100 V

  • Configuration:

    SINGLE

  • DC Current Gain-Min (hFE):

    30

  • JESD-30 Code:

    R-PDSO-G4

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    PNP

  • Power Dissipation-Max (Abs):

    3 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    125 MHz

FZT953TA Frequently Asked Questions (FAQs)

  • A good PCB layout for the FZT953TA should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device. A minimum of 2oz copper thickness is recommended. Refer to the Diodes Incorporated application note AN-114 for more details.
  • The FZT953TA requires a bias voltage of 2.5V to 5.5V. Ensure the bias voltage is stable and noise-free. A decoupling capacitor of 10nF to 100nF should be placed close to the device to filter out high-frequency noise.
  • The FZT953TA has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade above 85°C. Ensure proper thermal management and heat sinking to maintain optimal performance.
  • Yes, the FZT953TA is AEC-Q101 qualified, making it suitable for automotive and high-reliability applications. However, ensure you follow the recommended operating conditions and design guidelines to ensure the device meets the required reliability standards.
  • The FZT953TA has an integrated ESD protection diode. However, it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure the device is stored in an anti-static bag or tube.
