G-660S-6010 - CW Industries

Description: SWITCH SLIDE 4P3T 3A 125V

Download G-660S-6010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

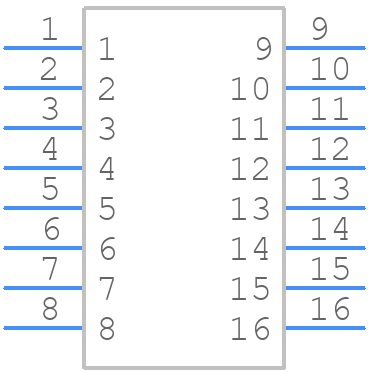

G-660S-6010 - CW Industries - PCB symbol
click to zoom
PCB Footprints

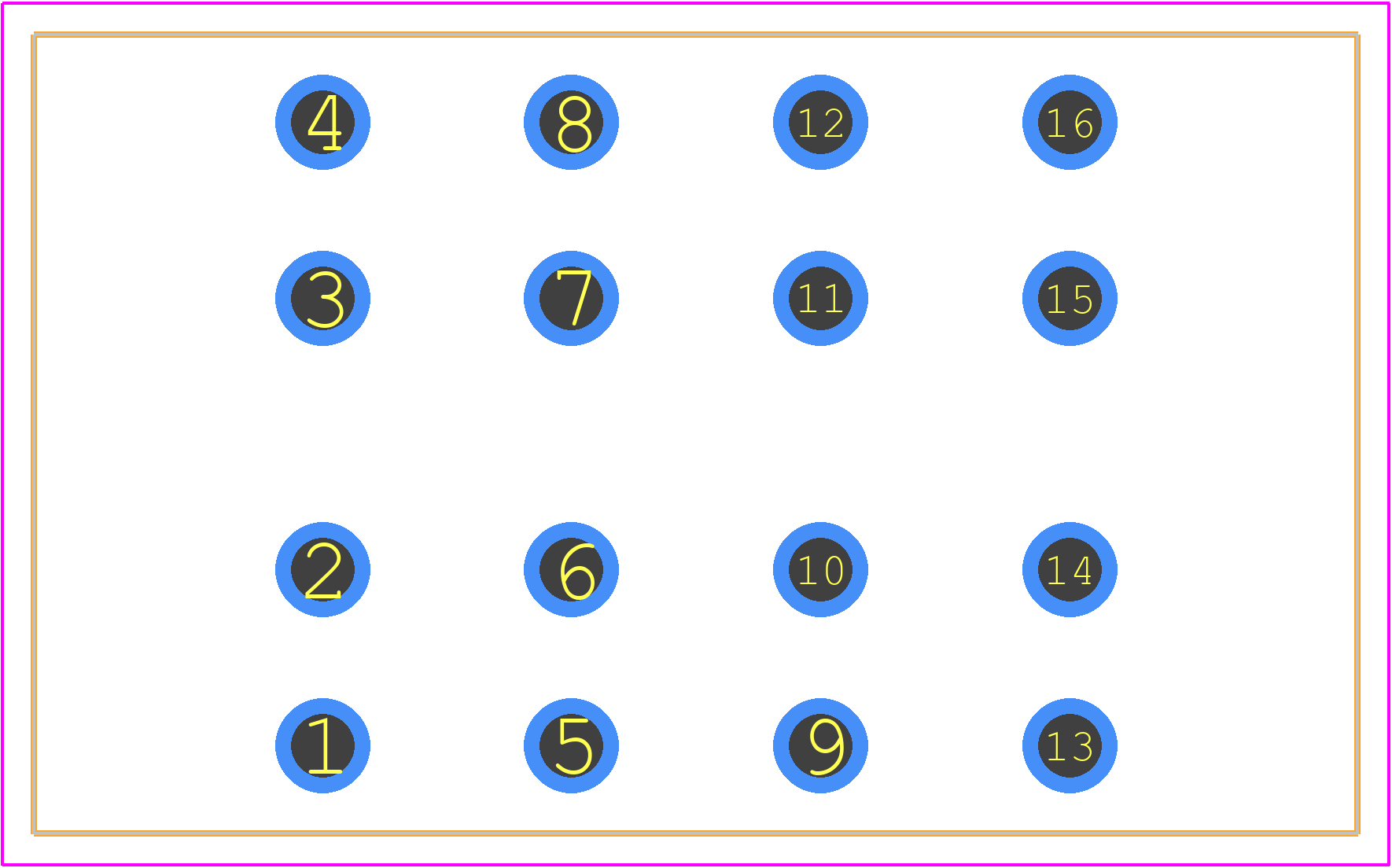

G-660S-6010 - CW Industries PCB footprint - Other - Other - G-660S-6010-1
click to zoom
3D Models
G-660S-6010 - CW Industries - 3D model - Other - G-660S-6010-1
click to zoom

G-660S-6010 Details

  • Manufacturer Part Number:

    G-660S-6010

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.50

  • Manufacturer:

    CW Industries

  • YTEOL:

    0

  • Actuator Color:

    BLACK

  • Actuator Length:

    0.344 inch

  • Actuator Material:

    NYLON

  • Actuator Type:

    SLIDE

  • Body Breadth:

    25.4 mm

  • Body Height:

    8.382 mm

  • Body Length or Diameter:

    42.0624 mm

  • Contact (AC) Max Rating R Load:

    3A@125VAC

  • Contact Current(AC)-Max:

    3 A

  • Contact Current(DC)-Max:

    0.5 A

  • Contact (DC) Max Rating R Load:

    0.5A@125VDC

  • Contact Function:

    ON-ON-ON

  • Contact Resistance:

    0.001 mΩ

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    125 V

  • Electrical Life:

    10000 Cycle(s)

  • Housing Material:

    COLD ROLLED STEEL

  • Insulation Resistance:

    100000000 Ω

  • Mounting Feature:

    THROUGH HOLE-STRAIGHT

  • Number of Positions:

    3

  • Operating Temperature-Max:

    104 °C

  • Operating Temperature-Min:

    -10 °C

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Type:

    SLIDE SWITCH

  • Terminal Length:

    0.26 inch

  • Terminal Material:

    COPPER

  • Termination Type:

    SOLDER

G-660S-6010 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.0 Nm (4-8 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the device.
  • Yes, the G-660S-6010 is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and installation to ensure the device remains secure and functional.
  • The operating temperature range for the G-660S-6010 is -40°C to +85°C (-40°F to +185°F). It's essential to ensure the device operates within this range to maintain its performance and reliability.
  • Yes, the G-660S-6010 is compatible with lead-free soldering processes. However, it's recommended to follow the manufacturer's guidelines for soldering temperature and time to ensure reliable connections.
  • The recommended storage temperature range for the G-660S-6010 is -40°C to +85°C (-40°F to +185°F), and the recommended storage humidity range is 20% to 80% RH. It's essential to store the device in a dry, cool place to prevent damage and ensure its performance.
