G091231304LF - Amphenol

Description: I/O Connectors 7P eSATA 30u R/A Reversed SMT

Download G091231304LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
G091231304LF - Amphenol - PCB symbol
click to zoom
PCB Footprints

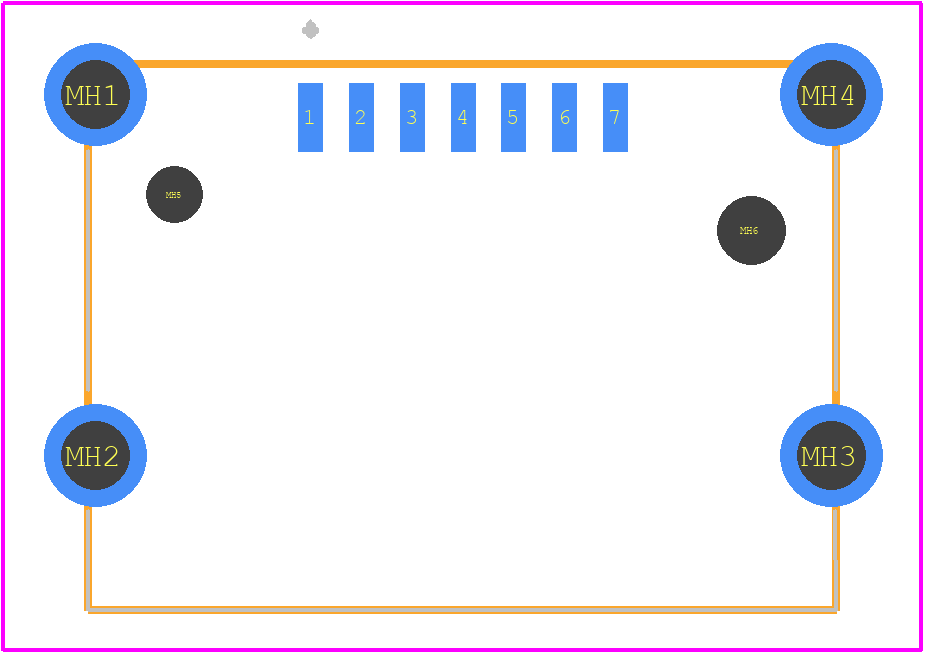

G091231304LF - Amphenol PCB footprint - Other - Other - G091231304LF-2
click to zoom
3D Models
G091231304LF - Amphenol - 3D model - Other - G091231304LF-2
click to zoom

G091231304LF Details

  • Manufacturer Part Number:

    G091231304LF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    8

  • Body Breadth:

    0.185 inch

  • Body Depth:

    0.537 inch

  • Body Length:

    0.831 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    SATA CONNECTOR

  • Contact Finish Termination:

    TIN

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    TELCOM, MODULAR

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e3

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    30u inch

  • Reference Standard:

    UL

  • Shell Finish:

    NICKEL

  • Shell Material:

    COPPER ALLOY

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    7

  • UL Flammability Code:

    94V-0

G091231304LF Frequently Asked Questions (FAQs)

  • The recommended torque value is 10-12 in-lbs (1.1-1.4 Nm) for the screw threads to ensure proper mating and to prevent damage to the connector.
  • Yes, the G091231304LF is designed to withstand high-vibration environments. However, it's recommended to follow the manufacturer's guidelines for mounting and securing the connector to ensure reliable performance.
  • The G091231304LF has a IP67 rating, making it suitable for outdoor use and harsh environments. However, it's essential to follow the manufacturer's guidelines for sealing and protection to ensure the connector's performance and longevity.
  • The G091231304LF has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's recommended to consult the datasheet for specific temperature ratings for the connector's materials and components.
  • The G091231304LF is designed to be compatible with other connectors that meet the same industry standards. However, it's recommended to verify compatibility and consult the manufacturer's guidelines before using connectors from different manufacturers.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G091231304LF Overview

Use the download button to access the G091231304LF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G0912, or try a keyword search, such as Telecom and Datacom Connectors
