The recommended PCB layout and land pattern for the G10-1GHT-035 can be found in the Bel Fuse application note AN-114, which provides detailed guidelines for PCB design and layout.
To ensure reliability in high-temperature applications, it is recommended to follow the derating guidelines provided in the datasheet, and to consider using a thermally conductive interface material to improve heat dissipation.
The maximum surge current rating for the G10-1GHT-035 is 100A for 1 second, as specified in the datasheet. However, it is recommended to consult with Bel Fuse application engineers for specific surge current requirements.
Yes, the G10-1GHT-035 can be used in high-frequency applications up to 1 GHz. However, it is recommended to consult with Bel Fuse application engineers to ensure the device meets the specific frequency requirements.
The lead time and minimum order quantity for the G10-1GHT-035 vary depending on the region and distributor. It is recommended to contact a authorized Bel Fuse distributor or representative for the most up-to-date information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
G10-1GHT-035 Overview

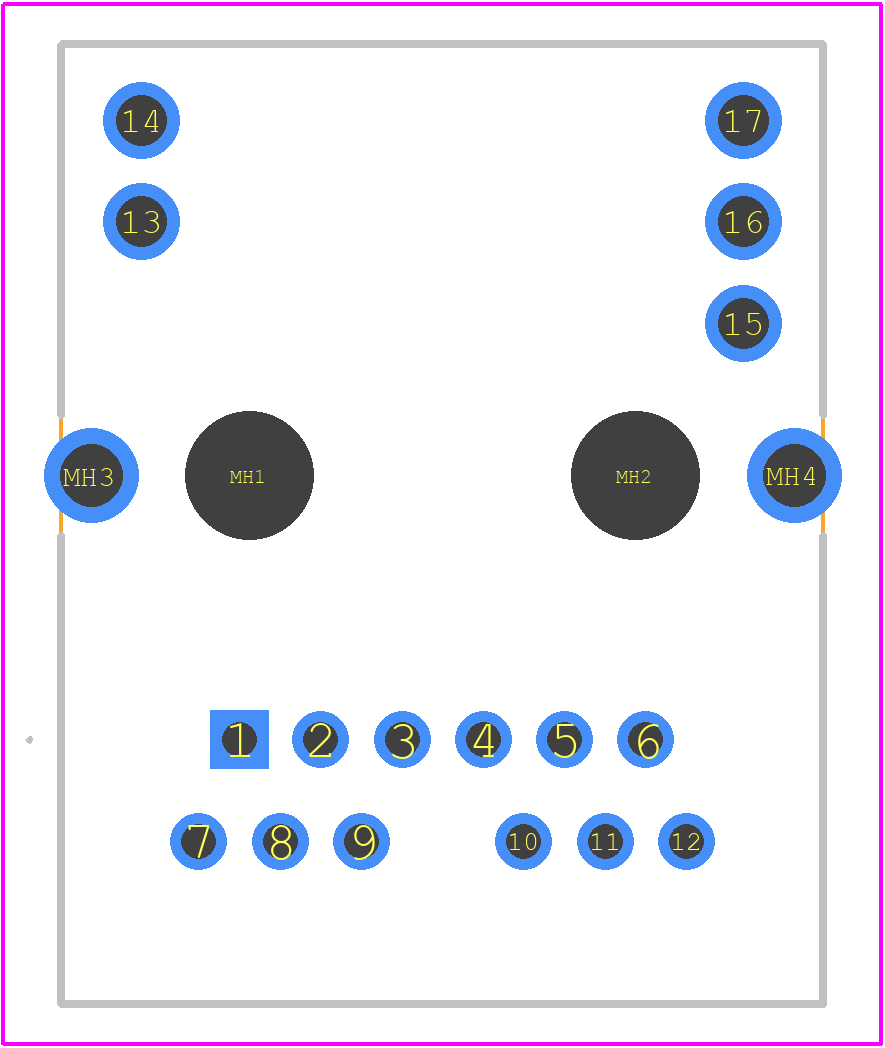

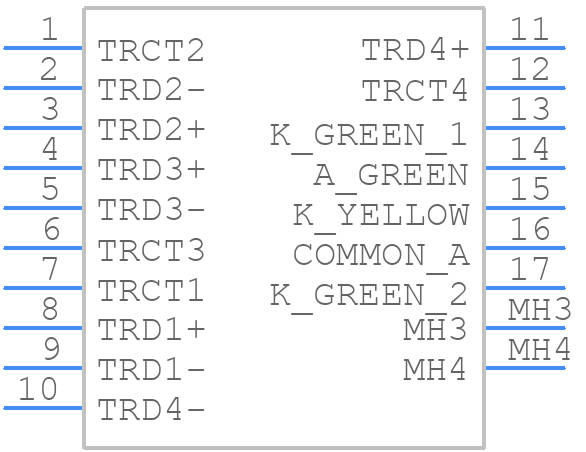

Use the download button to access the G10-1GHT-035 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G10-1,
or try a keyword search, such as Telecom and Datacom Connectors
