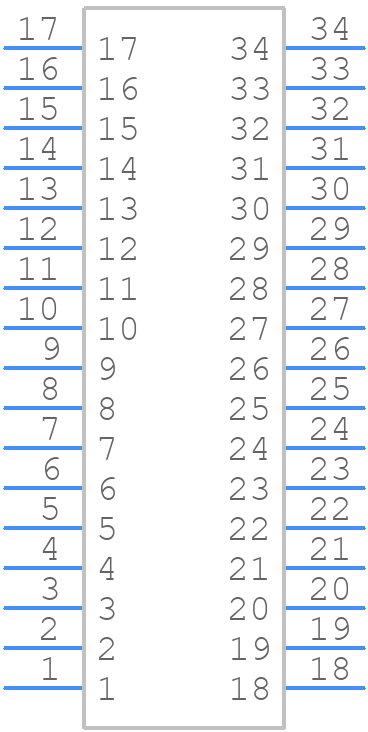

G125-FS13405L0P - Harwin

G125-FS13405L0P Details

• Manufacturer Part Number:

  G125-FS13405L0P

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  UK

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Harwin

• YTEOL:

  8.3

• Body Breadth:

  0.192 inch

• Body Depth:

  0.206 inch

• Body Length:

  0.937 inch

• Connector Type:

  BOARD CONNECTOR

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Finish Termination:

  Gold (Au) - with Nickel (Ni) barrier

• Contact Gender:

  FEMALE

• Contact Material:

  BERYLLIUM COPPER

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  25 mΩ

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Durability:

  1000 Cycles

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE

• JESD-609 Code:

  e4

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.049 inch

• Mating Contact Row Spacing:

  0.049 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -65 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  3.683 mm

• Rated Current (Signal):

  2.8 A

• Reference Standard:

  UL

• Terminal Pitch:

  1.25 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  34

• UL Flammability Code:

  94V-0
