G125-FV12005F1P - Harwin

Description: Gecko-SL: 10+10 Pos Receptacle DIL Straight 3mm THT Connector Hex Socket Screw-Lok

Download G125-FV12005F1P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
G125-FV12005F1P - Harwin - PCB symbol
click to zoom

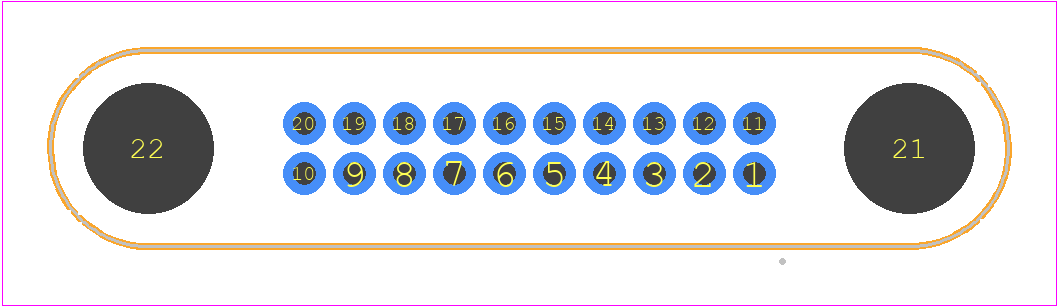

PCB Footprints
G125-FV12005F1P - Harwin PCB footprint - Other - Other - G125-FV12005F1P
click to zoom
3D Models
G125-FV12005F1P - Harwin - 3D model - Other - G125-FV12005F1P
click to zoom

G125-FV12005F1P Details

  • Manufacturer Part Number:

    G125-FV12005F1P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

G125-FV12005F1P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin technical note TN-105.
  • Yes, the G125-FV12005F1P is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat 2.
  • Yes, the G125-FV12005F1P is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of 95% RH at 40°C.
  • The G125-FV12005F1P has a mating cycle life of 500 cycles, as specified in the Harwin datasheet.
  • Yes, the G125-FV12005F1P can be used with PCB thicknesses ranging from 1.2mm to 2.4mm, but the recommended PCB thickness is 1.6mm for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G125-FV12005F1P Overview

Use the download button to access the G125-FV12005F1P schematic symbol, PCB footprint, and 3D model.
