G125-FV12605L0P - Harwin

Description: Gecko Latch: 13+13 Pos Receptacle DIL Straight 3mm THT Connector

Download G125-FV12605L0P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

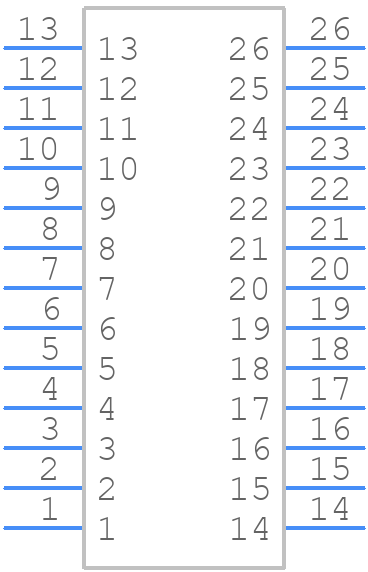

G125-FV12605L0P - Harwin - PCB symbol
click to zoom
PCB Footprints

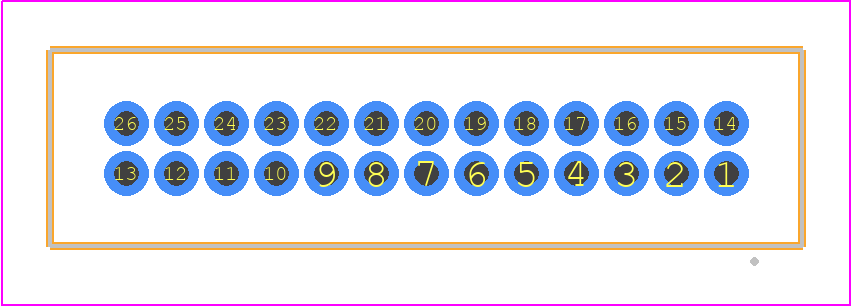

G125-FV12605L0P - Harwin PCB footprint - Other - Other - G125-FV12605L0P
click to zoom
3D Models
G125-FV12605L0P - Harwin - 3D model - Other - G125-FV12605L0P
click to zoom

G125-FV12605L0P Details

  • Manufacturer Part Number:

    G125-FV12605L0P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HALOGEN FREE

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

G125-FV12605L0P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks on the G125-FV12605L0P connector is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the G125-FV12605L0P connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration, and 3 axes.
  • The G125-FV12605L0P connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the G125-FV12605L0P connector is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C.
  • The G125-FV12605L0P connector has a mating cycle life of 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
