G125-FV12605L0R - Harwin

Description: Gecko Latch: 13+13 Pos Receptacle DIL Straight 3mm THT Connector (T+R)

Download G125-FV12605L0R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

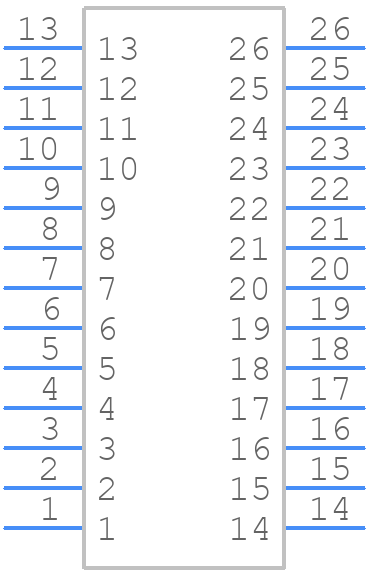

G125-FV12605L0R - Harwin - PCB symbol
click to zoom
PCB Footprints

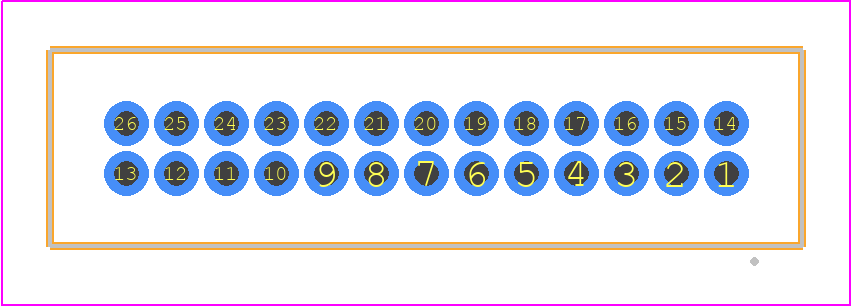

G125-FV12605L0R - Harwin PCB footprint - Other - Other - G125-FV12605L0R
click to zoom
3D Models
G125-FV12605L0R - Harwin - 3D model - Other - G125-FV12605L0R
click to zoom

G125-FV12605L0R Details

  • Manufacturer Part Number:

    G125-FV12605L0R

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HALOGEN FREE

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    26

  • UL Flammability Code:

    94V-0

G125-FV12605L0R Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the G125-FV12605L0R connector onto the PCB is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the G125-FV12605L0R connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration, and 3 axes.
  • Yes, the G125-FV12605L0R connector is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated assembly systems.
  • The G125-FV12605L0R connector has a maximum operating temperature of 125°C, making it suitable for high-temperature applications.
  • Yes, the G125-FV12605L0R connector has a sealed design and is rated to IP67, making it suitable for outdoor and harsh environmental applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G125-FV12605L0R Overview

Use the download button to access the G125-FV12605L0R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G125-, or try a keyword search, such as Headers and Edge Type Connectors
