G125-MH10805M4-1AD1ADP - Harwin

Description: Gecko-MT: 1+8+1 Pos Plug Right-Angle THT Connector Screw-Lok Board Mount

Download G125-MH10805M4-1AD1ADP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

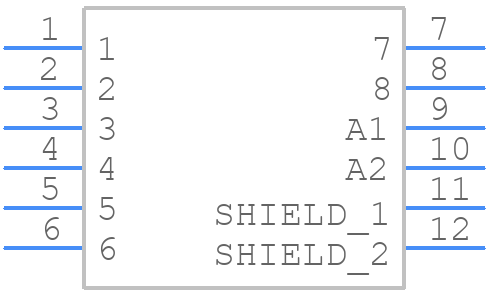

G125-MH10805M4-1AD1ADP - Harwin - PCB symbol
click to zoom
PCB Footprints

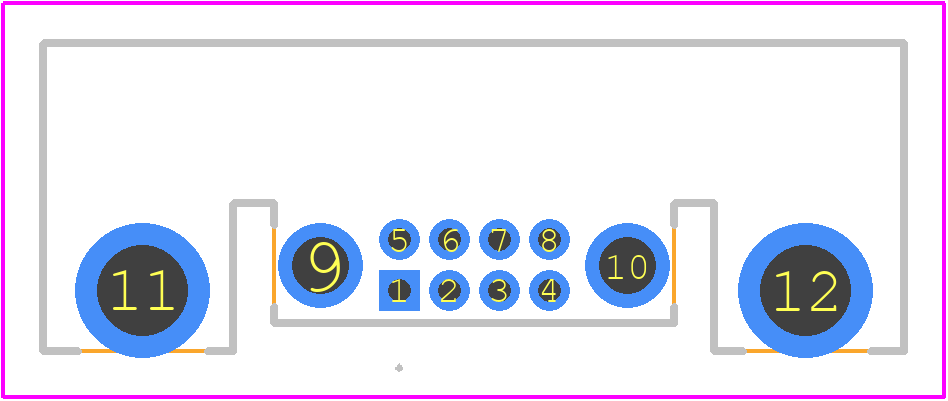

G125-MH10805M4-1AD1ADP - Harwin PCB footprint - Other - Other - G125-MH10805M4-1AD1ADP
click to zoom
3D Models
G125-MH10805M4-1AD1ADP - Harwin - 3D model - Other - G125-MH10805M4-1AD1ADP
click to zoom

G125-MH10805M4-1AD1ADP Details

  • Manufacturer Part Number:

    G125-MH10805M4-1AD1ADP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Board Mounting Option:

    M2 THREADED HOLES

  • Body Breadth:

    0.208 inch

  • Body Depth:

    0.255 inch

  • Body Length:

    0.846 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S8P2

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    25 mΩ

  • Contact Style:

    RND PIN-SKT

  • Durability:

    1000 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    2.8 N

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    GLASS FILLED POLYETHYLENE

  • JESD-609 Code:

    e4

  • Mating Contact Pitch:

    0.05 inch

  • Mating Contact Row Spacing:

    0.05 inch

  • Mixed Contacts:

    YES

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.25 mm

  • Packing Method:

    TR

  • Polarization Key:

    POLARIZED HOUSING

  • Rated Current (Power):

    10 A

  • Rated Current (Signal):

    2.8 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.137 inch

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.2 N

G125-MH10805M4-1AD1ADP Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm, as specified in the Harwin datasheet. However, it's essential to consult the specific application requirements and environmental conditions to determine the optimal torque value.
  • Yes, the G125-MH10805M4-1AD1ADP connector is designed to withstand vibrations and is suitable for use in high-vibration applications. However, it's crucial to ensure that the connector is properly secured and that the screw locks are tightened to the recommended torque value to prevent loosening during operation.
  • The G125-MH10805M4-1AD1ADP connector has an operating temperature range of -40°C to +125°C. While it can withstand high temperatures, it's essential to consider the specific application requirements and ensure that the connector is not exposed to temperatures exceeding its rated range.
  • The G125-MH10805M4-1AD1ADP connector has a sealed construction and is designed to withstand harsh environments. However, it's essential to consult the Harwin datasheet and application notes for specific guidance on using the connector in environments with high humidity or exposure to chemicals.
  • The mating cycle life of the G125-MH10805M4-1AD1ADP connector is 500 cycles, as specified in the Harwin datasheet. This means that the connector can withstand 500 mating and unmating cycles without compromising its performance or reliability.
