Part Image

G125-MH21005L2P - Harwin

Description: Gecko Latch: 5+5 Pos Plug DIL Right-Angle 4.7mm THT Connector Latch THT Hold-Down

Download G125-MH21005L2P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

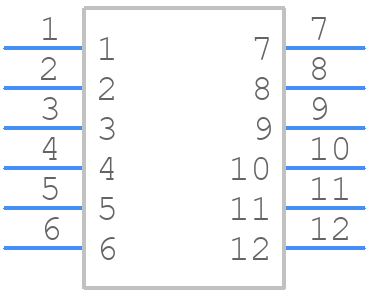

Symbol
G125-MH21005L2P - Harwin - PCB symbol
click to zoom

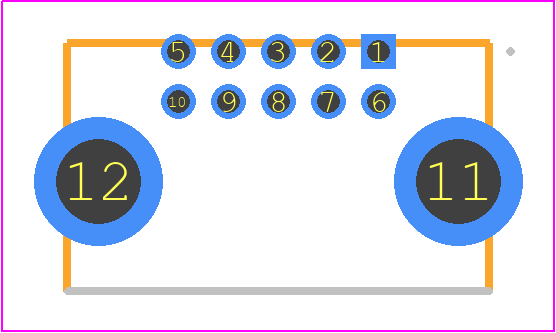

PCB Footprints
G125-MH21005L2P - Harwin PCB footprint - Other - Other - G125-MH21005L2P
click to zoom
3D Models
G125-MH21005L2P - Harwin - 3D model - Other - G125-MH21005L2P
click to zoom

G125-MH21005L2P Details

  • Manufacturer Part Number:

    G125-MH21005L2P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

G125-MH21005L2P Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the G125-MH21005L2P connector is 0.5 Nm to 1.5 Nm, as specified in the Harwin datasheet.
  • Yes, the G125-MH21005L2P connector is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G, 3 axes, 2 hours per axis, as per IEC 61373 Cat 2.
  • Yes, the G125-MH21005L2P connector is designed for use in harsh environments, with a rating of IP67 (dust-tight and protected against immersion in water up to 1m depth for 30 minutes).
  • The maximum operating temperature of the G125-MH21005L2P connector is 125°C, as specified in the Harwin datasheet.
  • Yes, the G125-MH21005L2P connector is designed for high-speed data transmission, with a bandwidth of up to 10 Gbps and a frequency range of up to 10 GHz.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G125-MH21005L2P Overview

Use the download button to access the G125-MH21005L2P schematic symbol, PCB footprint, and 3D model.
