G125-MH23405L2P - Harwin

Description: Gecko Latch: 17+17 Pos Plug DIL Right-Angle 4.7mm THT Connector Latch THT Hold-Down

Download G125-MH23405L2P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

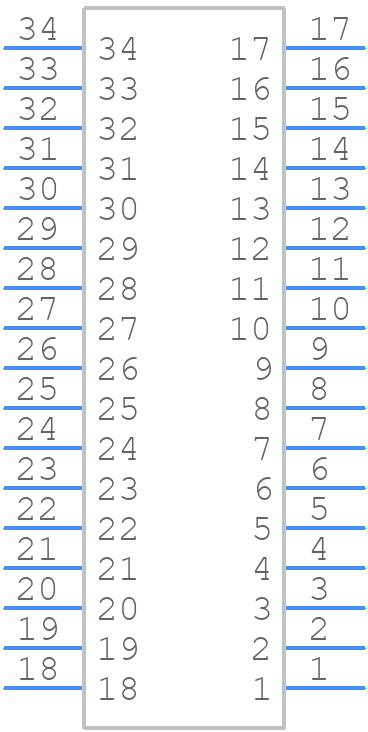

G125-MH23405L2P - Harwin - PCB symbol
click to zoom
PCB Footprints

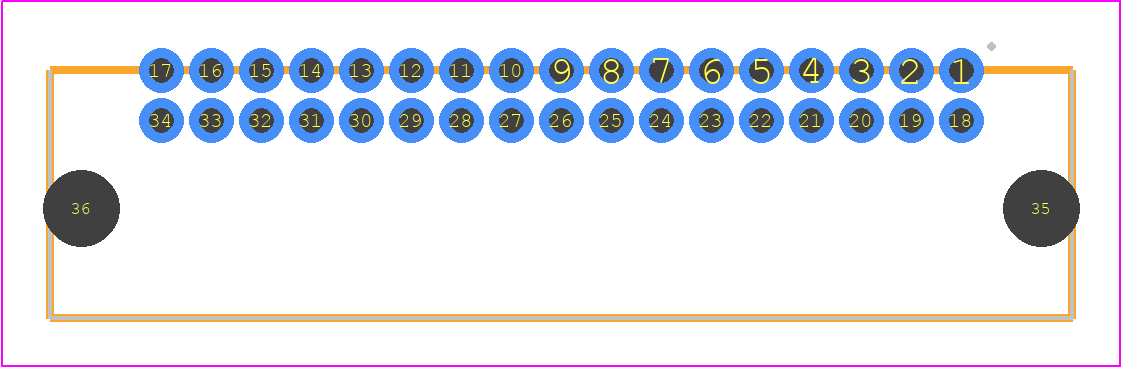

G125-MH23405L2P - Harwin PCB footprint - Other - Other - G125-MH23405L2P
click to zoom
3D Models
G125-MH23405L2P - Harwin - 3D model - Other - G125-MH23405L2P
click to zoom

G125-MH23405L2P Details

  • Manufacturer Part Number:

    G125-MH23405L2P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

G125-MH23405L2P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the G125-MH23405L2P is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G peak acceleration.
  • Yes, the G125-MH23405L2P is designed to operate in harsh environments, with a temperature range of -40°C to +125°C and humidity resistance of 95% RH at 40°C.
  • The G125-MH23405L2P has a mating cycle life of 500 cycles, as specified in the Harwin datasheet.
  • Yes, the G125-MH23405L2P can be used with PCB thicknesses ranging from 1.2 mm to 2.4 mm, but may require additional support or modification.
