G125-MS13405M2P - Harwin

Description: Gecko-SL: 17+17 Pos Plug DIL Straight SMT Connector Screw-Lok Board Mount

Download G125-MS13405M2P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

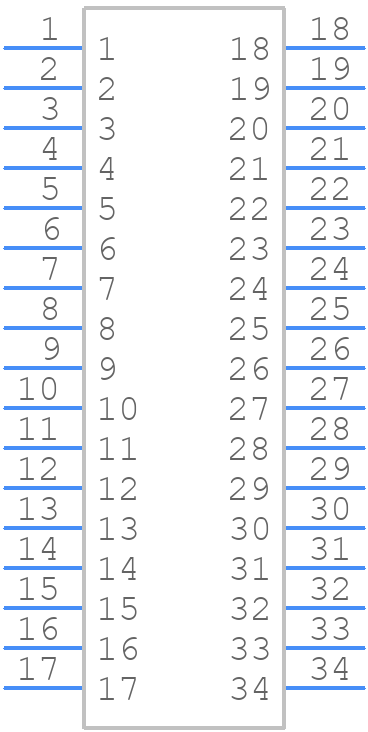

G125-MS13405M2P - Harwin - PCB symbol
click to zoom
PCB Footprints

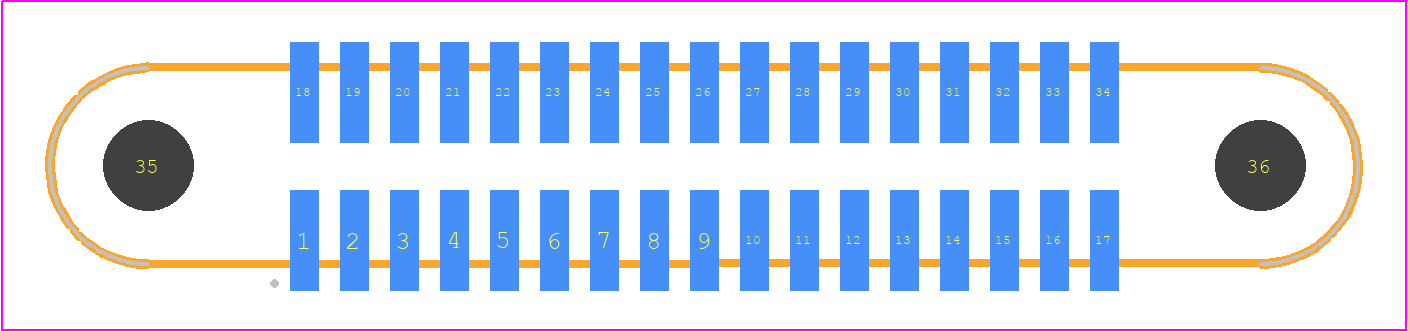

G125-MS13405M2P - Harwin PCB footprint - Other - Other - G125-MS13405M2P
click to zoom
3D Models
G125-MS13405M2P - Harwin - 3D model - Other - G125-MS13405M2P
click to zoom

G125-MS13405M2P Details

  • Manufacturer Part Number:

    G125-MS13405M2P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    8.3

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

G125-MS13405M2P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the G125-MS13405M2P is designed to withstand high-vibration environments, but it's recommended to perform additional testing and validation for specific applications.
  • The operating temperature range for the G125-MS13405M2P is -55°C to 125°C, but it's recommended to derate the connector's performance at extreme temperatures.
  • The G125-MS13405M2P has a rugged design and is suitable for use in harsh environments, but it's recommended to perform additional testing and validation for specific applications.
  • The G125-MS13405M2P is designed to be compatible with other connectors that meet the MS13405M2P specification, but compatibility with connectors from other manufacturers should be validated through testing and validation.
