G125-MS15005M2P - Harwin

Description: Gecko-SL: 25+25 Pos Plug DIL Straight SMT Connector Screw-Lok Board Mount

Download G125-MS15005M2P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
G125-MS15005M2P - Harwin - PCB symbol
click to zoom
PCB Footprints

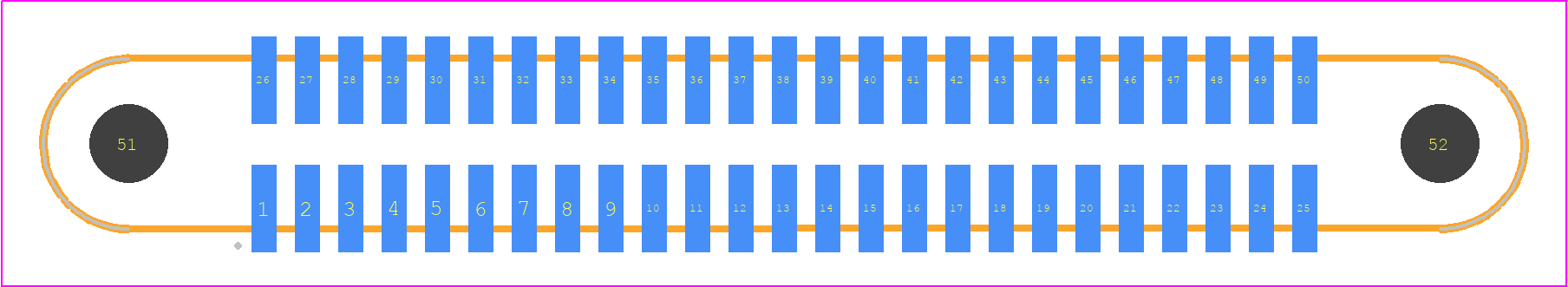

G125-MS15005M2P - Harwin PCB footprint - Other - Other - G125-MS15005M2P
click to zoom
3D Models
G125-MS15005M2P - Harwin - 3D model - Other - G125-MS15005M2P
click to zoom

G125-MS15005M2P Details

  • Manufacturer Part Number:

    G125-MS15005M2P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    8.3

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

G125-MS15005M2P Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the G125-MS15005M2P connector is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
  • Yes, the G125-MS15005M2P connector is designed to withstand high-vibration environments, with a tested vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the G125-MS15005M2P connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C and humidity resistance of up to 95% RH.
  • The G125-MS15005M2P connector has a mating cycle life of 500 cycles, making it suitable for applications that require frequent mating and unmating.
  • Yes, the G125-MS15005M2P connector is designed for automated assembly, with a pick-and-place compatible design and a tape-and-reel packaging option.
