Part Image

G125-MV15005L1P - Harwin

Description: Gecko Latch: 25+25 Pos Plug DIL Straight 3mm THT Connector Latch THT Hold-Down

Download G125-MV15005L1P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
G125-MV15005L1P - Harwin - PCB symbol
click to zoom
PCB Footprints

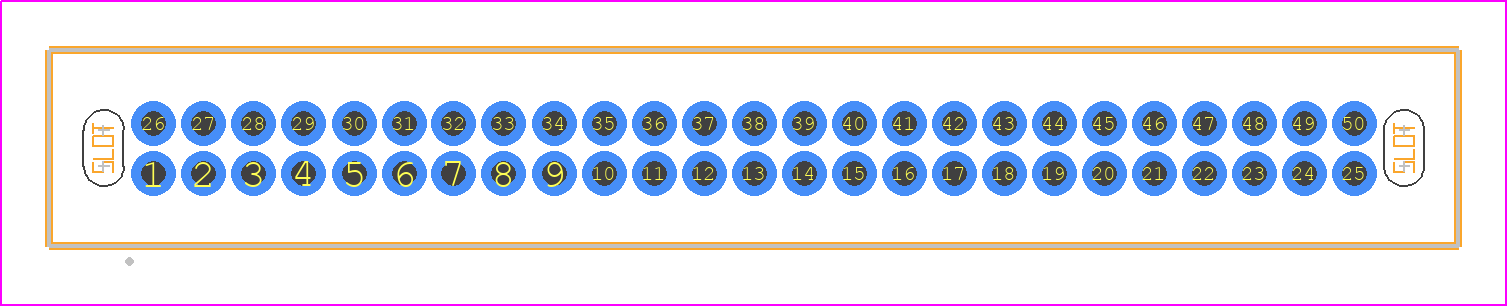

G125-MV15005L1P - Harwin PCB footprint - Other - Other - G125-MV15005L1P
click to zoom
3D Models
G125-MV15005L1P - Harwin - 3D model - Other - G125-MV15005L1P
click to zoom

G125-MV15005L1P Details

  • Manufacturer Part Number:

    G125-MV15005L1P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94V-0

G125-MV15005L1P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the G125-MV15005L1P is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat 2.
  • Yes, the G125-MV15005L1P is designed to operate in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of 95% RH at 40°C.
  • The G125-MV15005L1P has a mating cycle life of 500 cycles, as specified in the Harwin datasheet.
  • Yes, the G125-MV15005L1P can be used with PCB thicknesses ranging from 1.2 mm to 2.4 mm, but the recommended PCB thickness is 1.6 mm for optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G125-MV15005L1P Overview

Use the download button to access the G125-MV15005L1P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G125-, or try a keyword search, such as Headers and Edge Type Connectors
