G125-MV23405L0P - Harwin

Description: Gecko Latch: 17+17 Pos Plug DIL Straight 4.5mm THT Connector no Latches

Download G125-MV23405L0P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

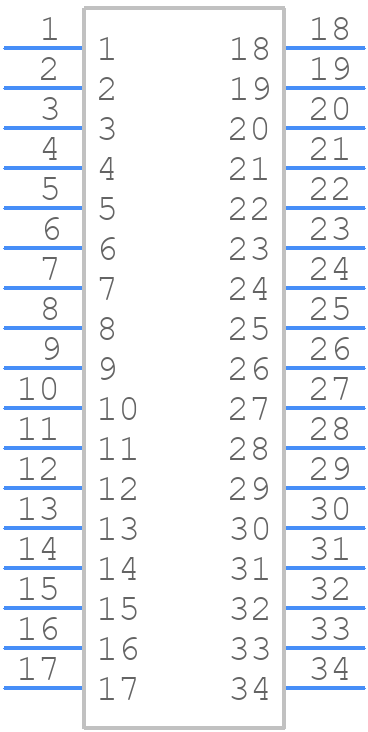

G125-MV23405L0P - Harwin - PCB symbol
click to zoom
PCB Footprints

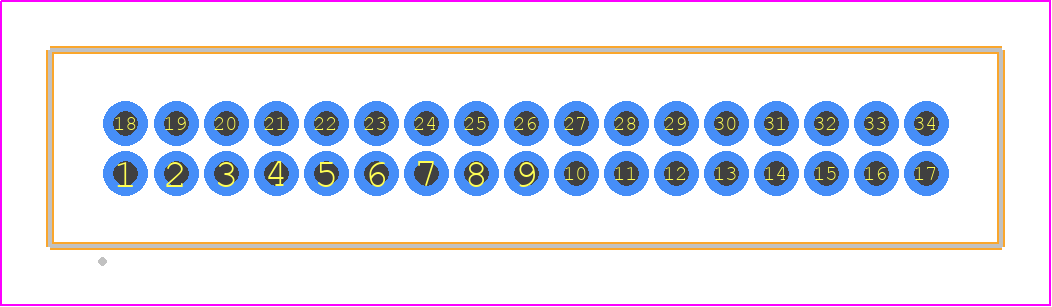

G125-MV23405L0P - Harwin PCB footprint - Other - Other - G125-MV23405L0P
click to zoom
3D Models
G125-MV23405L0P - Harwin - 3D model - Other - G125-MV23405L0P
click to zoom

G125-MV23405L0P Details

  • Manufacturer Part Number:

    G125-MV23405L0P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    PHOSPHOR BRONZE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

G125-MV23405L0P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw locks is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the G125-MV23405L0P is designed to withstand high-vibration environments, with a vibration testing rating of 10-2000 Hz, 10G peak acceleration, as per IEC 61373 Cat 2.
  • The operating temperature range for the G125-MV23405L0P is -40°C to +125°C, making it suitable for a wide range of industrial and commercial applications.
  • Yes, the G125-MV23405L0P is compatible with lead-free soldering processes, with a peak soldering temperature of 260°C for 10 seconds.
  • The mating cycle life of the G125-MV23405L0P is 500 cycles, as specified in the Harwin datasheet.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

G125-MV23405L0P Overview

Use the download button to access the G125-MV23405L0P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G125-, or try a keyword search, such as Headers and Edge Type Connectors
