G125-MV23405L2P - Harwin

Description: Gecko Latch: 17+17 Pos Plug DIL Straight 4.5mm THT Connector Latch THT Hold-Down

Download G125-MV23405L2P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

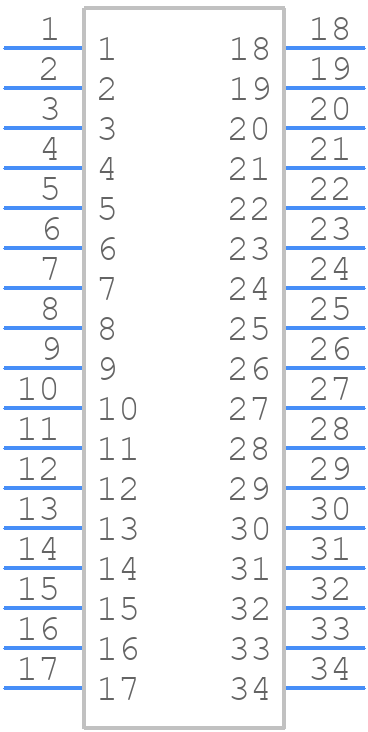

G125-MV23405L2P - Harwin - PCB symbol
click to zoom
PCB Footprints

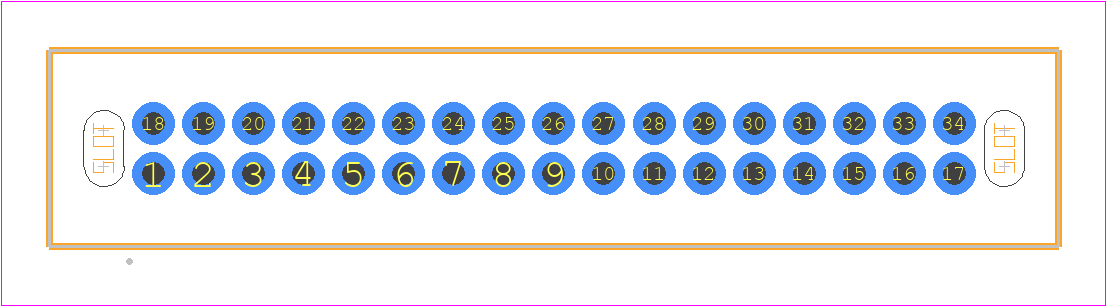

G125-MV23405L2P - Harwin PCB footprint - Other - Other - G125-MV23405L2P
click to zoom
3D Models
G125-MV23405L2P - Harwin - 3D model - Other - G125-MV23405L2P
click to zoom

G125-MV23405L2P Details

  • Manufacturer Part Number:

    G125-MV23405L2P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    UK

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Harwin

  • YTEOL:

    7.7

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Gold (Au)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.25 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    34

  • UL Flammability Code:

    94V-0

G125-MV23405L2P Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 Nm to 1.5 Nm, as specified in the Harwin application notes.
  • Yes, the G125-MV23405L2P is designed to meet the requirements of high-vibration applications, such as those found in aerospace, defense, and industrial environments.
  • The operating temperature range of the G125-MV23405L2P is -55°C to +125°C, making it suitable for use in harsh environments.
  • Yes, the G125-MV23405L2P is compatible with lead-free soldering processes and meets the requirements of RoHS and WEEE directives.
  • The mating cycle life of the G125-MV23405L2P is 500 cycles, making it suitable for applications where frequent mating and unmating are required.
