- Part Number G150N50W4E
- Manufacturer ANAREN
- Pin Count 2
- Part Category Attenuator or Isolator
- Package Category Other

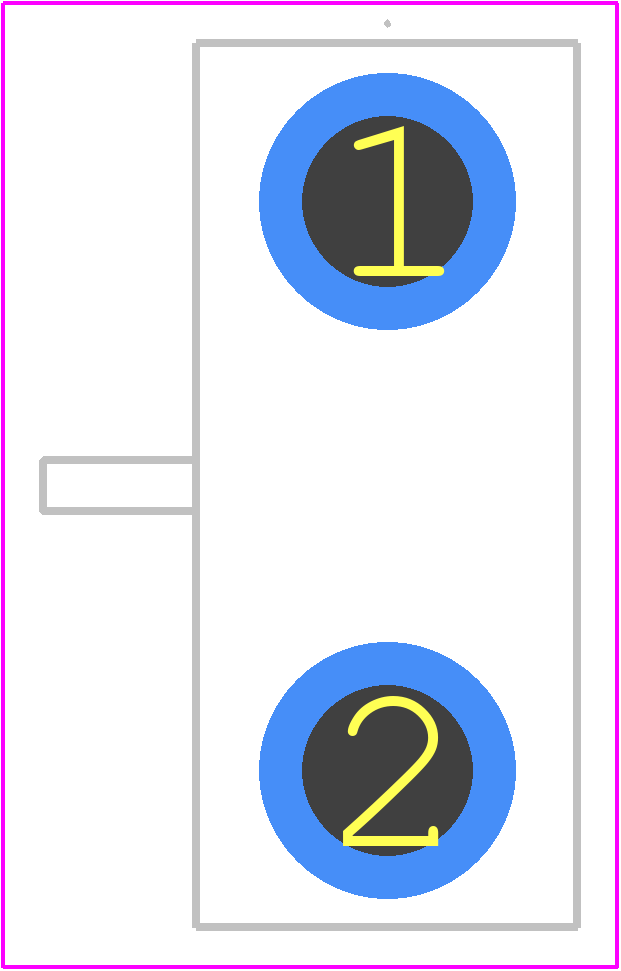

- Footprint Name Other - G150N50W4E-1
- Released Date Aug 8, 2021
- Last Modified Date Oct 14, 2024 11:14 AM UTC
- Pinout / Pin List Click Here (Member Only)
G150N50W4E Details
-
Manufacturer Part Number:
G150N50W4E
-
Part Life Cycle Code:
Transferred
-
Package Description:
ROHS COMPLIANT PACKAGE-1
-
Manufacturer:
Anaren Microwave
-
Characteristic Impedance:
50 Ω
-
Construction:
MODULE
-
Input Power-Max (CW):
51.76 dBm
-
Operating Frequency-Max:
2700 MHz
-
Operating Temperature-Max:
150 °C
-
Operating Temperature-Min:
-50 °C
-
RF/Microwave Device Type:
TERMINATION
G150N50W4E Frequently Asked Questions (FAQs)
-
The recommended PCB layout and land pattern can be found in the Anaren Microwave application note AN-112, which provides guidelines for optimal performance and thermal management.
-
The G150N50W4E is designed to handle high-power pulses and surges, but it's recommended to follow the derating guidelines in the datasheet to ensure reliable operation. Additionally, Anaren Microwave recommends using a surge protection device (SPD) to protect the component from excessive voltage spikes.
-
The thermal resistance of the G150N50W4E is typically around 2°C/W. The junction temperature can be estimated using the thermal resistance and the power dissipation. It's recommended to keep the junction temperature below 150°C to ensure reliable operation.
-
Yes, the G150N50W4E can be used in a push-pull configuration. However, impedance matching is critical to ensure optimal performance. Anaren Microwave recommends using a 1:1 balun transformer to match the impedance and minimize losses.
-
The G150N50W4E should be stored in a dry, cool place, away from direct sunlight and moisture. Handling should be done with anti-static wrist straps and mats to prevent ESD damage. It's also recommended to follow the EIA-625 standard for handling and storage of electronic components.
Trust Checks
Community Provided
System Verified
Community Approved
G150N50W4E Overview
Use the download button to access the G150N50W4E schematic symbol, PCB footprint, and 3D model.
