A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. The device should be placed near a thermal pad or a heat sink to ensure good heat dissipation.
Ensure proper heat sinking, use a thermally conductive material for the PCB, and follow the recommended thermal design guidelines. Also, consider derating the device's current rating at high temperatures.
A gate drive circuit with a voltage swing of 10-15V and a current capability of 1-2A is recommended. A gate resistor of 10-20 ohms and a gate capacitor of 1-10nF can be used to optimize switching performance.
Use a TVS diode or a zener diode for overvoltage protection, and a fuse or a current sense resistor for overcurrent protection. Also, consider using a gate clamp circuit to prevent overvoltage on the gate.
The recommended operating frequency range for the G2R1000MT17D is up to 100 kHz. However, the device can be operated at higher frequencies with proper design and layout considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
G2R1000MT17D Overview

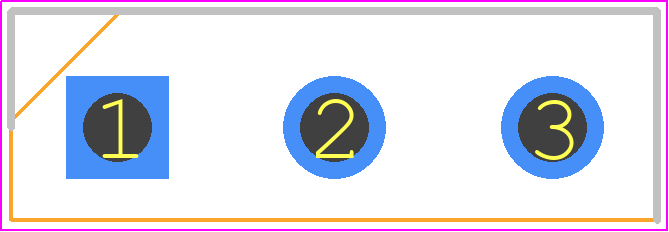

Use the download button to access the G2R1000MT17D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like G2R10,
or try a keyword search, such as Power Field-Effect Transistors
