G30 footprint, schematic symbol and 3D model by XP POWER

Symbol

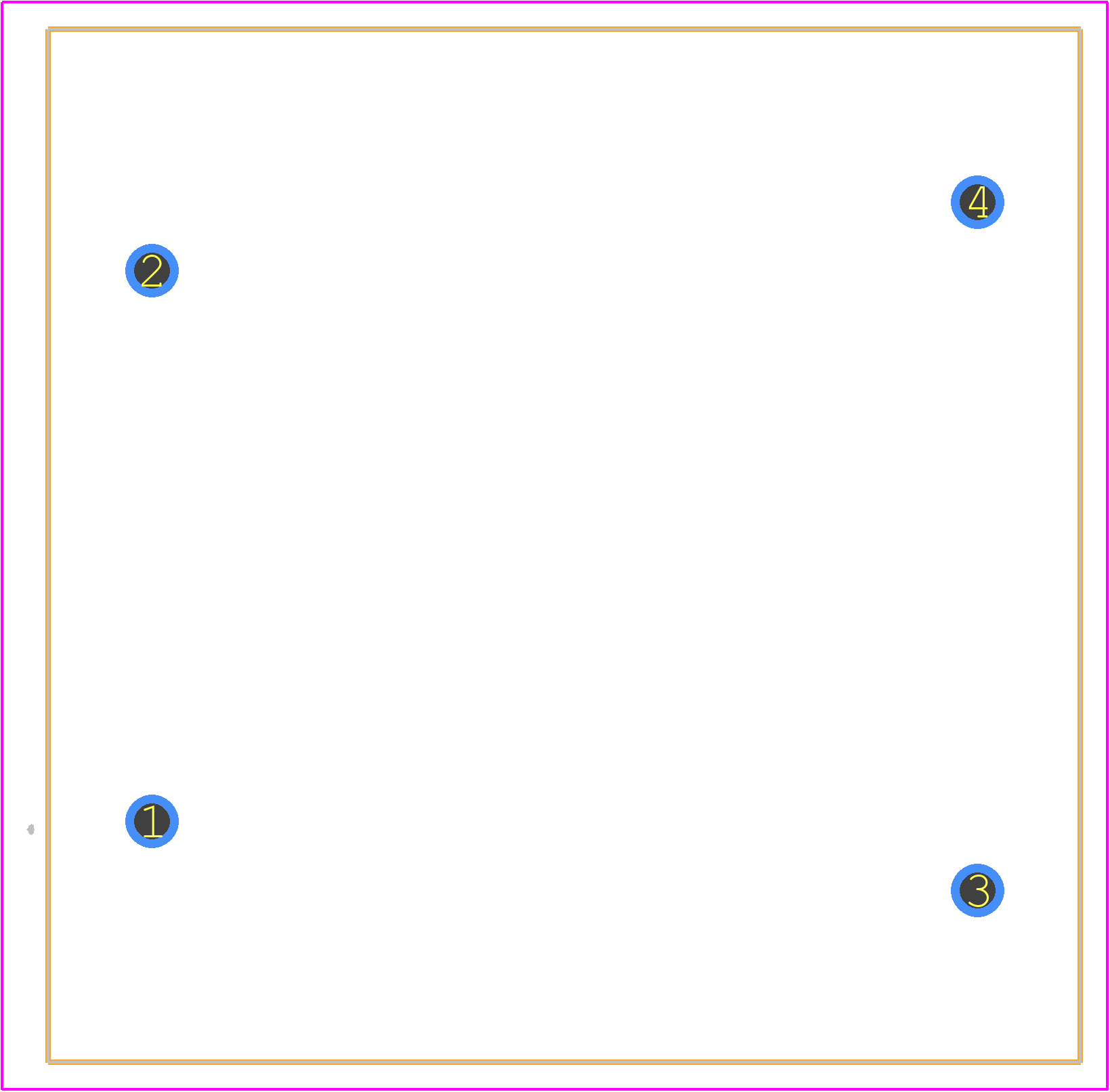

PCB Footprints

3D Models

G30 Details

The G30 can operate in a temperature range of -40°C to +85°C, with a derating of 2.5% per °C above 60°C.
The G30 meets various safety certifications, including UL, EN, and IEC. Ensure you select the correct model and configuration for your application, and consult the datasheet and certification documents for specific details.
The recommended input fuse rating for the G30 is 5A slow-blow or 3A fast-acting, depending on the specific model and application.
Yes, the G30 is designed to withstand high-vibration environments, with a vibration test specification of 10-2000 Hz, 2G acceleration.
The power dissipation of the G30 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.

Expert Contribution

System Verified

Community Approved

Use the download button to access the G30 schematic symbol, PCB footprint, and 3D model.
